J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
121 V1.032818
54. Manually place and tighten the hex bolts to secure the internal axial bearing housing cover to
the axial bearing housing.

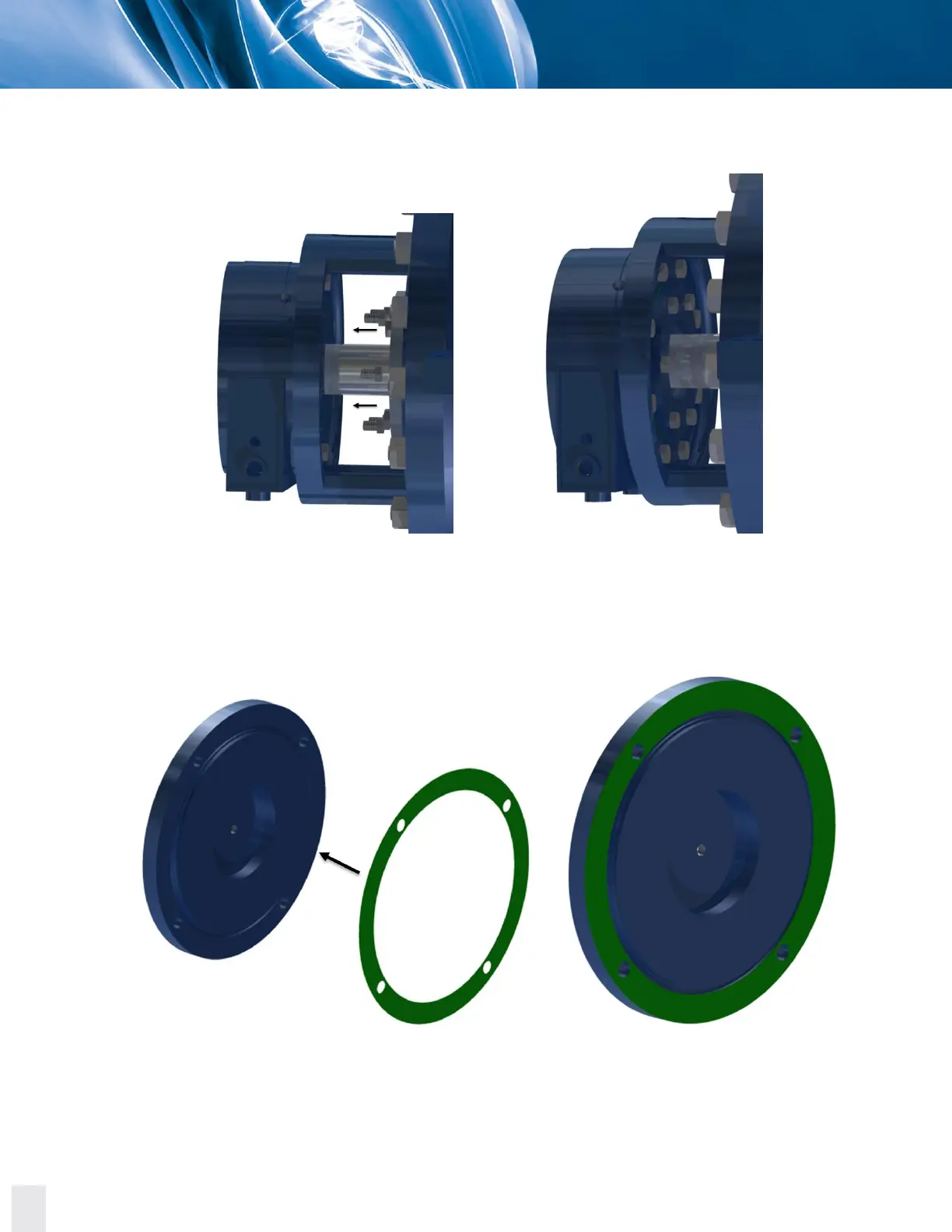

Figure 8.53JD. Placing and tightening the hex bolts to secure the internal axial bearing housing cover to the axial
bearing housing.
55. Place the corresponding gasket on the external axial bearing housing cover.
Figure 8.54JD. Placing the corresponding gasket on the external axial bearing housing cover.
