J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
122 V1.032818
56. Insert the external axial bearing housing cover over the shaft from the non-coupling side until
it reaches the axial bearing housing.

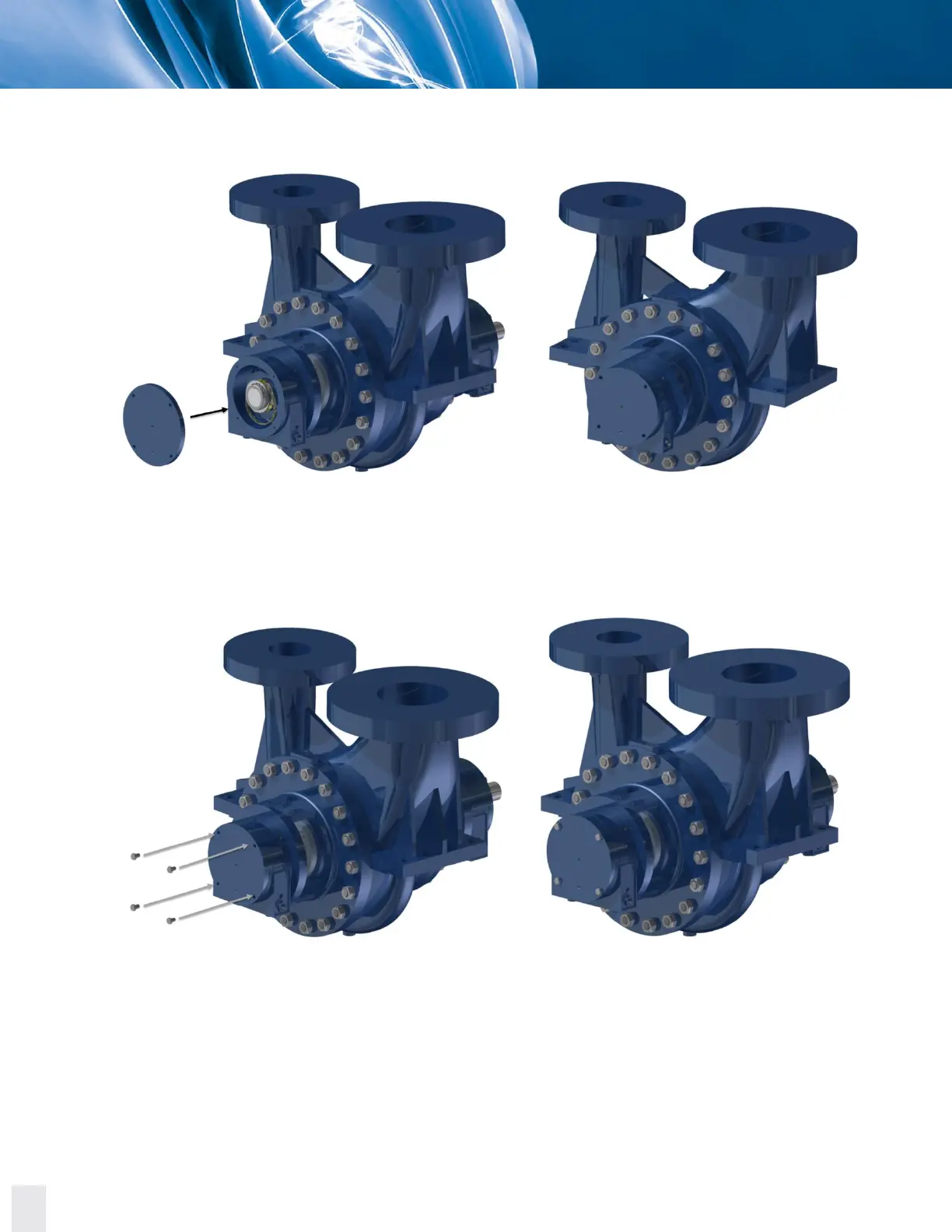

Figure 8.55JD. Inserting the external axial bearing housing cover over the shaft from the non-coupling side.
57. Manually place and tighten the hex bolts to secure the external axial bearing housing cover to
the axial bearing housing.
Figure 8.56JD. Placing and tightening the hex bolts to secure the external axial bearing housing cover to the axial
bearing housing.
