25. Insert the axial mechanical seal over the shaft from the non-coupling side until it reaches the
case.

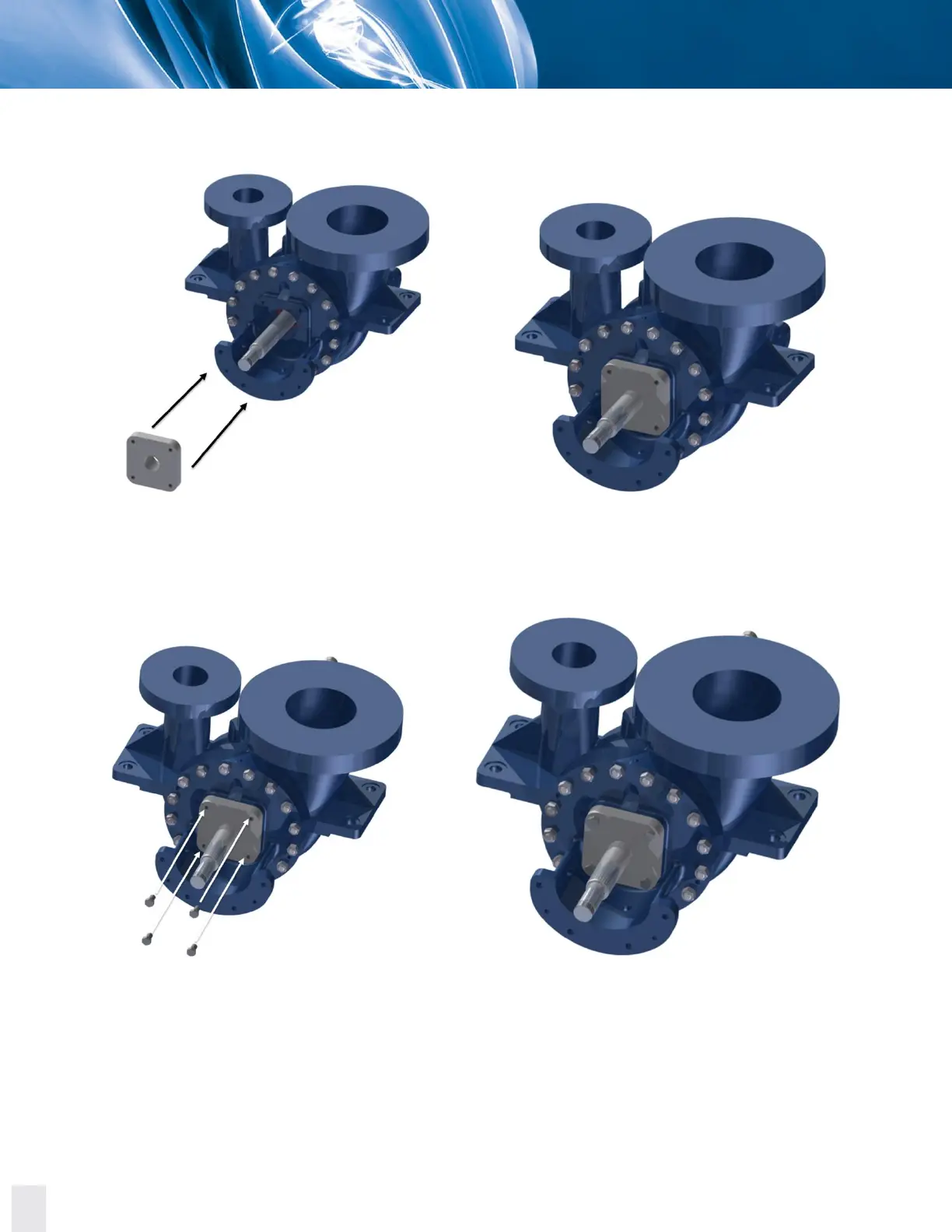

Figure 8.25. Inserting the mechanical seal over the shaft from the non-coupling side.
26. Manually place and tighten the hex bolts to secure the axial mechanical seal to the case.
Figure 8.26. Placing and tightening the hex bolts to secure the axial mechanical seal to the case.
