32. Insert the radial bearing sleeve over the shaft from the coupling side until it reaches the
radial bearing.

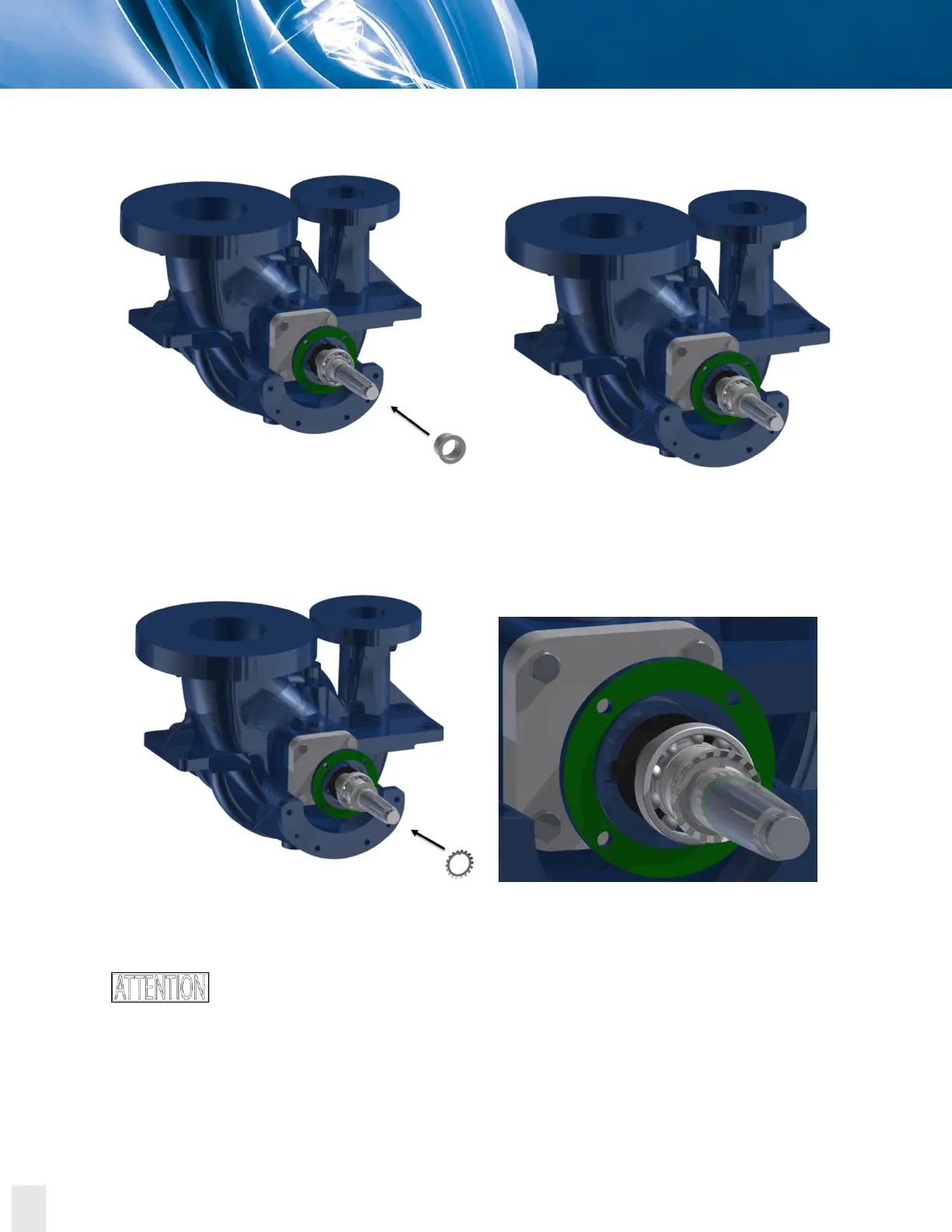

Figure 8.32. Inserting the radial bearing sleeve over the shaft from the coupling side.
33. Insert the radial bearing lock washer over the shaft from the coupling side.
Figure 8.33. Inserting the radial bearing lock washer over the shaft from the coupling side.
 Make sure that the tab located in the inner diameter of the radial bearing lock
washer fits in the shaft groove.
