34. Insert the radial lock nut over the shaft from the coupling side until it reaches the radial
bearing lock washer and tighten.

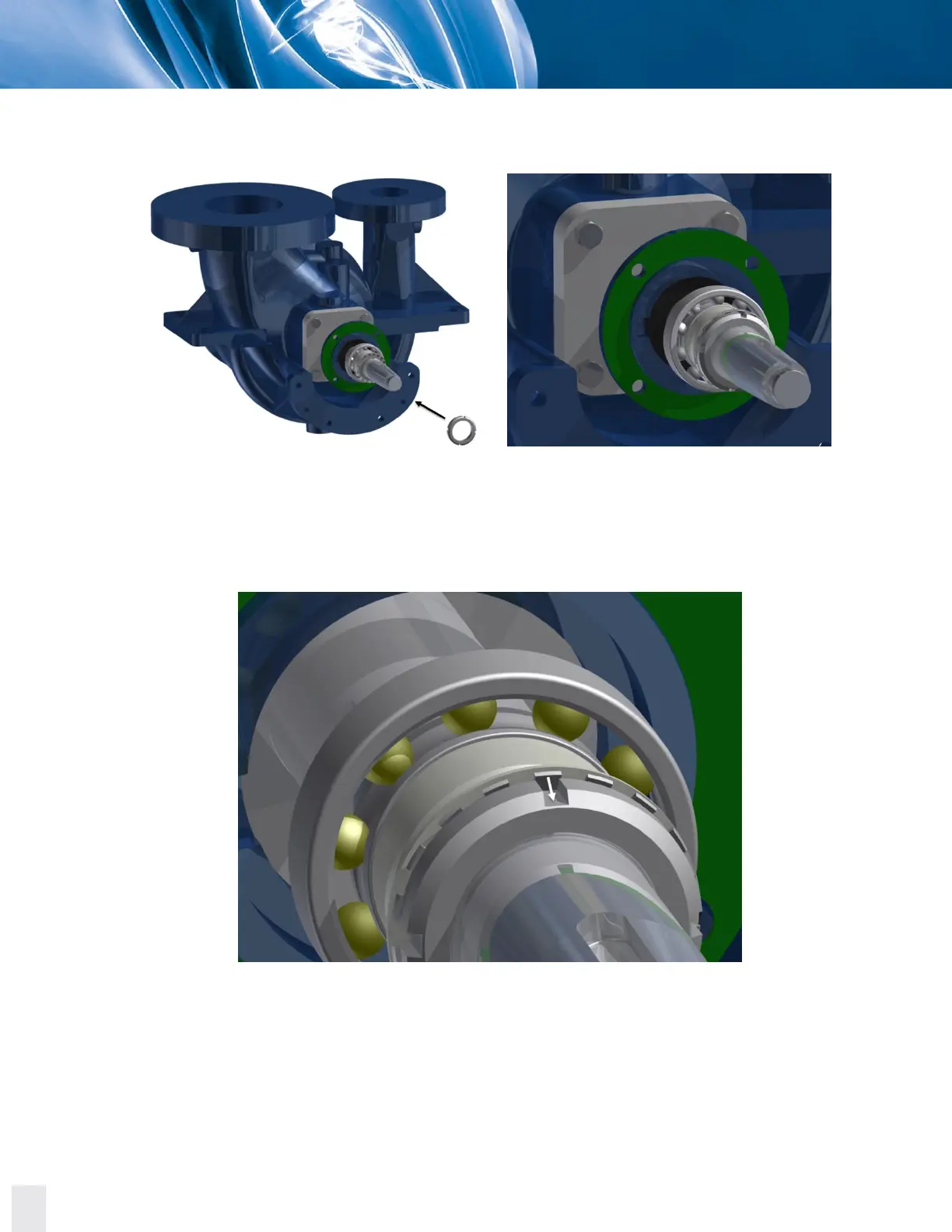

Figure 8.34. Inserting the radial bearing lock nut over the shaft from the coupling side.
35. Bend one of the tabs of the radial bearing lock washer towards one of the grooves of the
radial bearing locknut.
Figure 8.35. Bending one of the tabs of the radial bearing lock washer towards one of the grooves of the radial
bearing locknut.
