In search of a match between a tab of the coupling side (radial) bearing lock
washer and a slot of the coupling side (radial) bearing lock nut, the lock nut should
always move forward, never backwards.
COUPLING SIDE (RADIAL) BEARING HOUSING
36. Insert the radial bearing housing over the shaft from the coupling side until it reaches the
case.

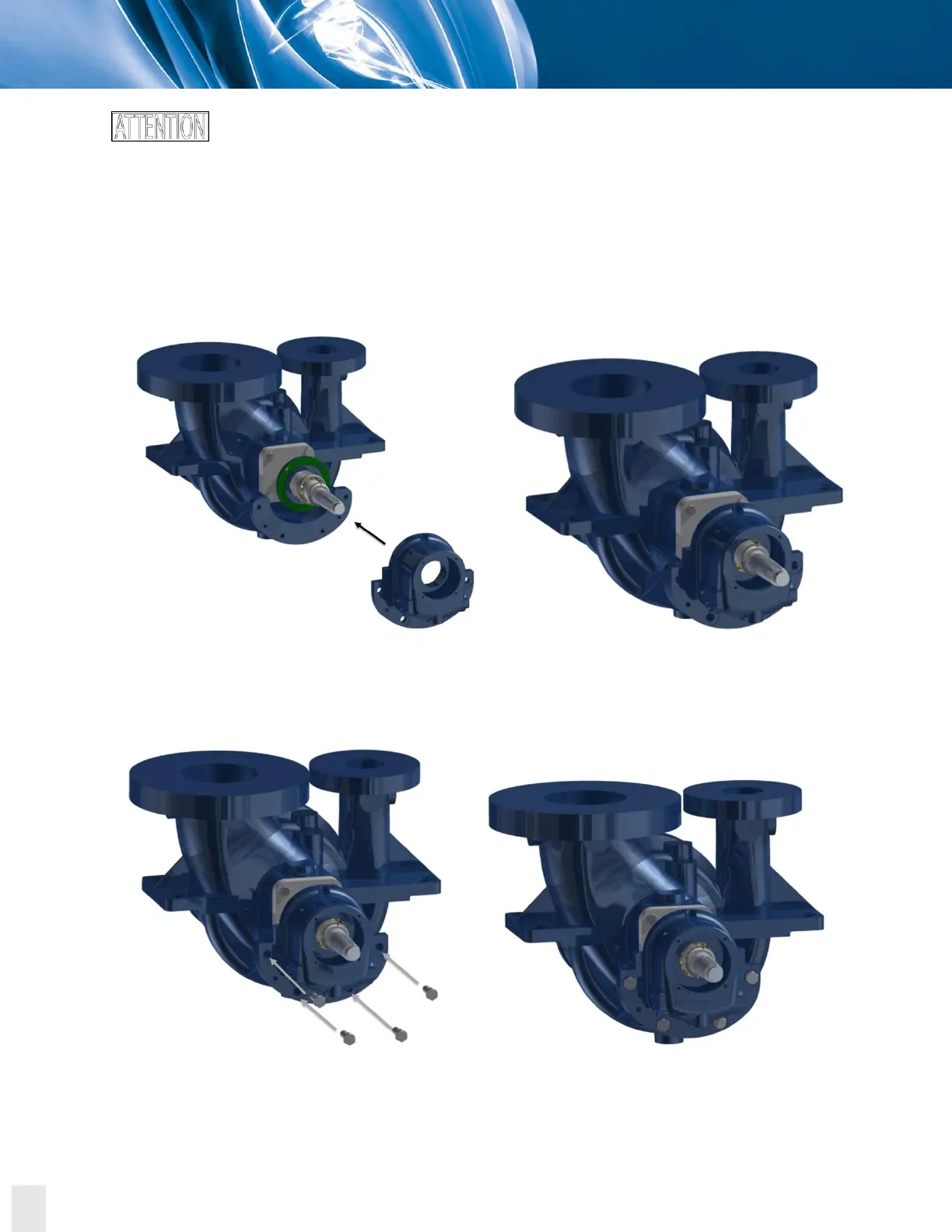

Figure 8.36. Inserting the radial bearing housing over the shaft from the coupling side.
37. Manually place and tighten the hex bolts to secure the radial bearing housing to the case.
Figure 8.37. Placing and tightening the hex bolts to secure the radial bearing housing to the case.
