J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
91 V1.032818
60. Manually place and tighten the hex bolts to secure the internal axial bearing housing cover to
the axial bearing housing.

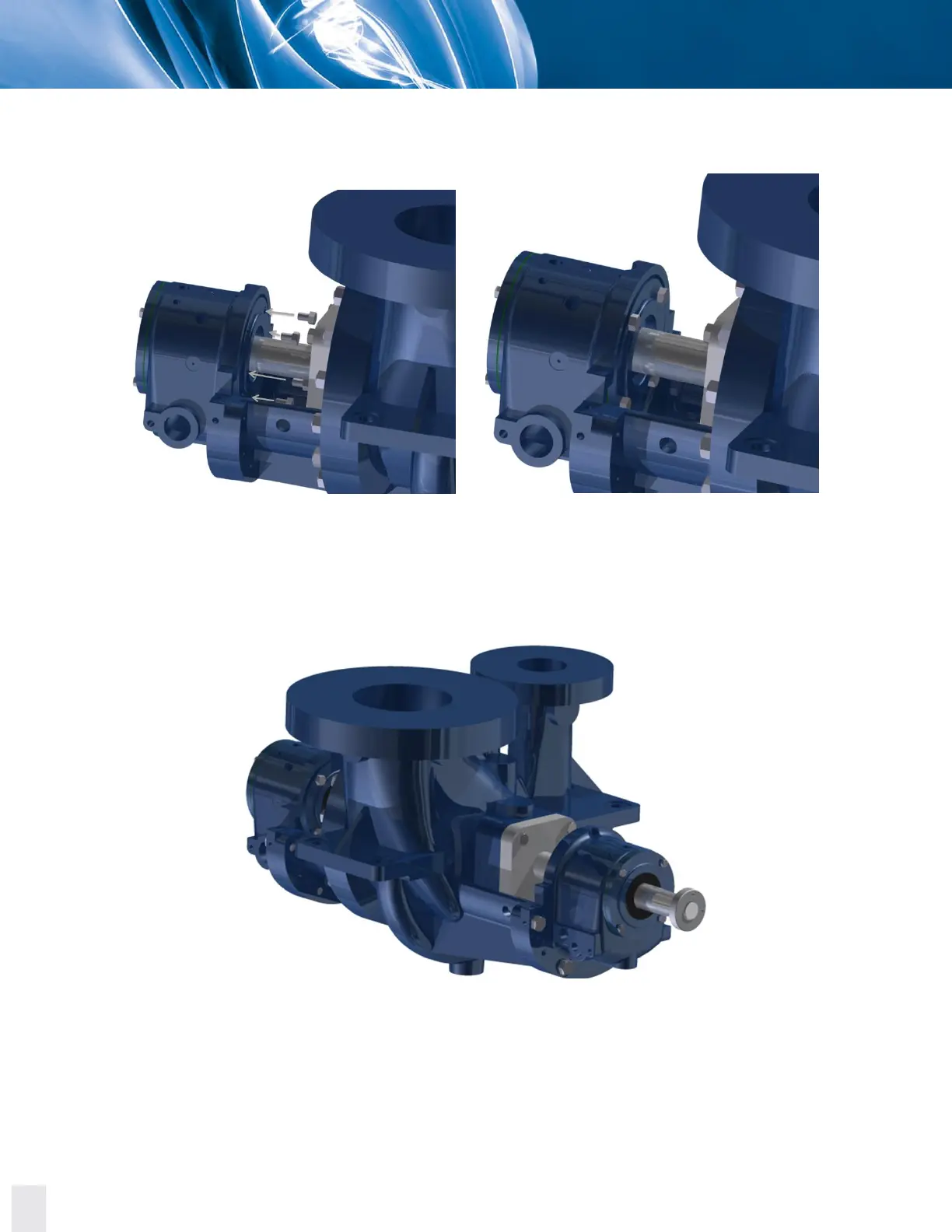

Figure 8.59. Placing and tightening the hex bolts to secure the internal axial bearing housing cover to the axial
bearing housing.
61. Assembly of the J Line pump is complete.
Figure 8.60. Complete J Line pump assembly.
