J Line Pump
Horizontal Double Suction Centrifugal Pump ā API 610 Process Pump
90 V1.032818

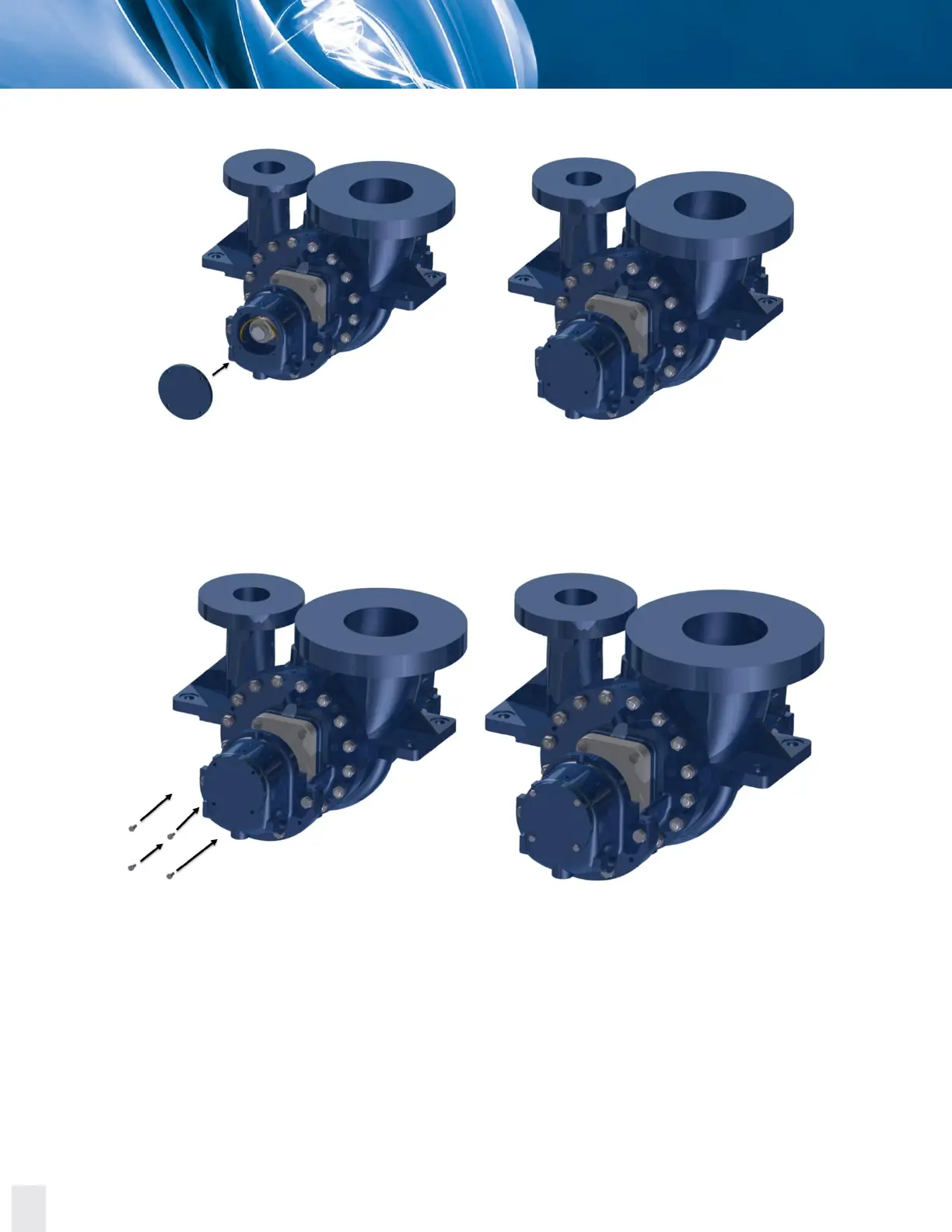

58. Place the external axial bearing housing cover on the axial bearing housing.
Figure 8.57. Placing the external axial bearing housing cover on the axial bearing housing.
59. Manually place and tighten the hex bolts to secure the external axial bearing housing cover to
the axial bearing housing.
Figure 8.58. Placing and tightening the hex bolts to secure the external axial bearing housing cover to the axial
bearing housing.
