56. Insert the axial oil ring over the shaft from the non-coupling side inside the axial bearing
housing until it rests on the axial bearing sleeve’s groove.

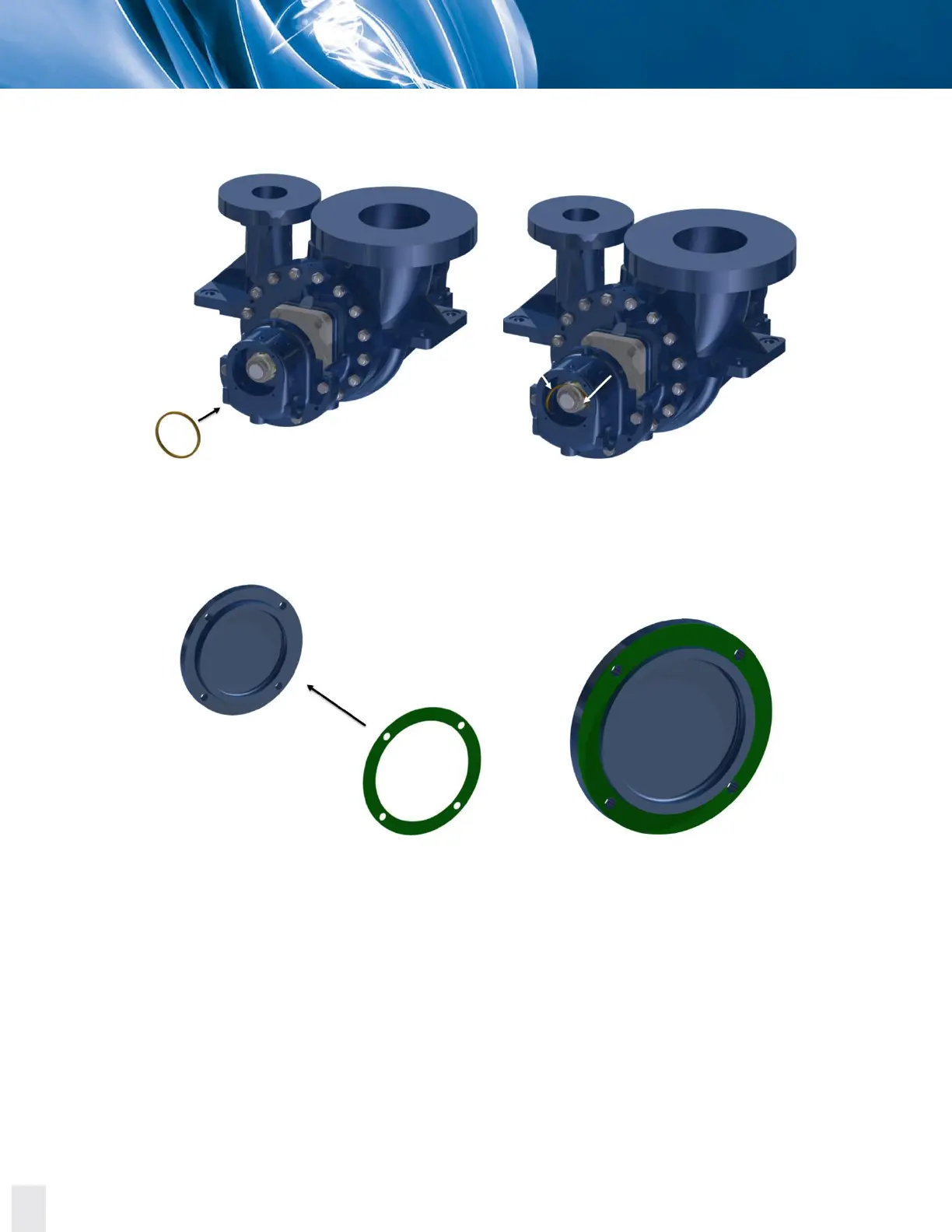

Figure 8.55. Inserting the axial oil ring over the shaft into the axial bearing housing from the non-coupling side.
57. Place the corresponding gasket on the external axial bearing housing cover.
Figure 8.56. Placing the corresponding gasket on the external axial bearing housing cover.
