Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
88 V1.032818
NON-COUPLING SIDE (AXIAL) BEARING HOUSING

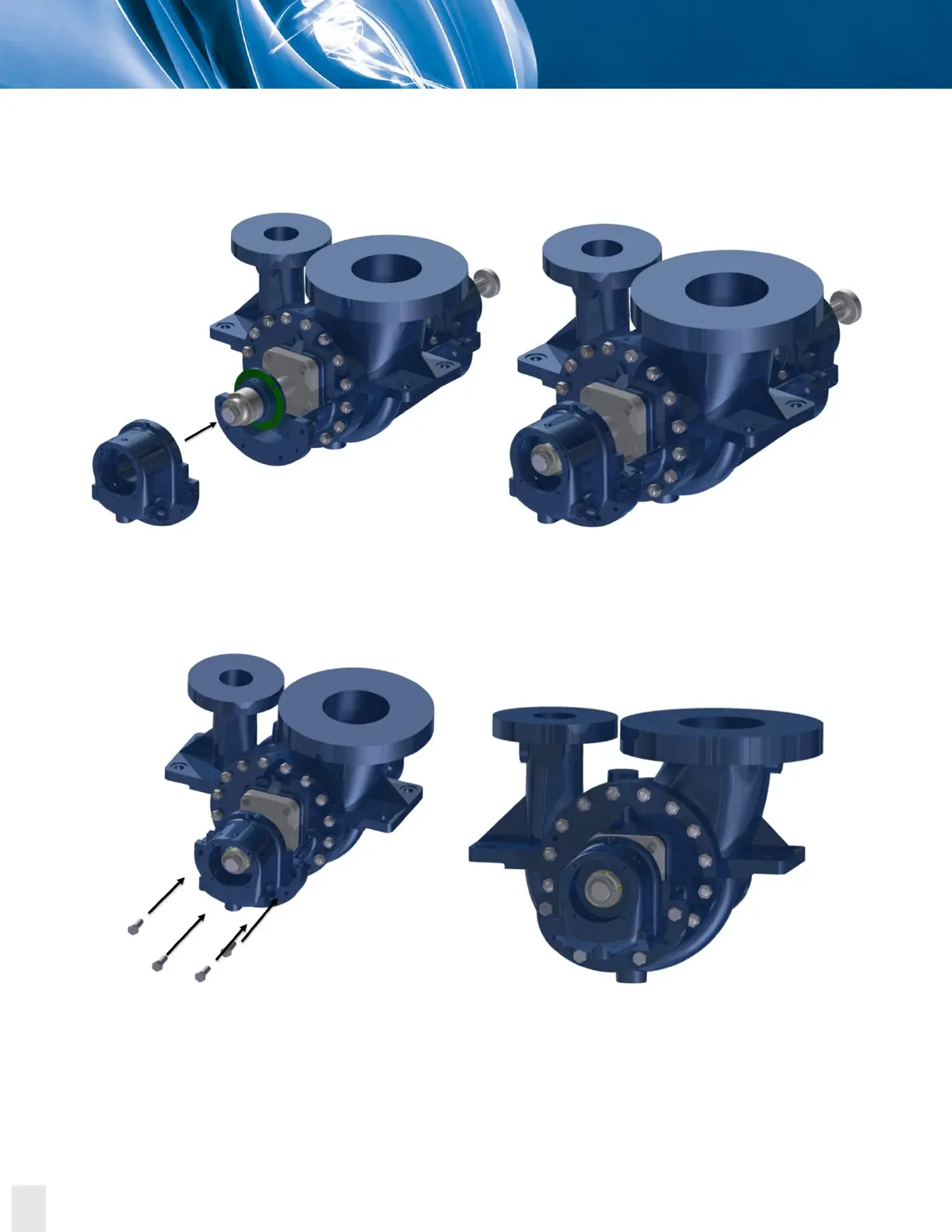

54. Insert the axial bearing housing over the shaft from the non-coupling side until it reaches the
internal axial bearing cover.
Figure 8.53. Inserting the axial bearing housing over the shaft from the non-coupling side.
55. Manually place and tighten the hex bolts to secure the axial bearing housing to the case.
Figure 8.54. Placing and tightening the hex bolts to secure the axial bearing housing to the case.
