J Line Pump
Horizontal Double Suction Centrifugal Pump – API 610 Process Pump
95 V1.032818

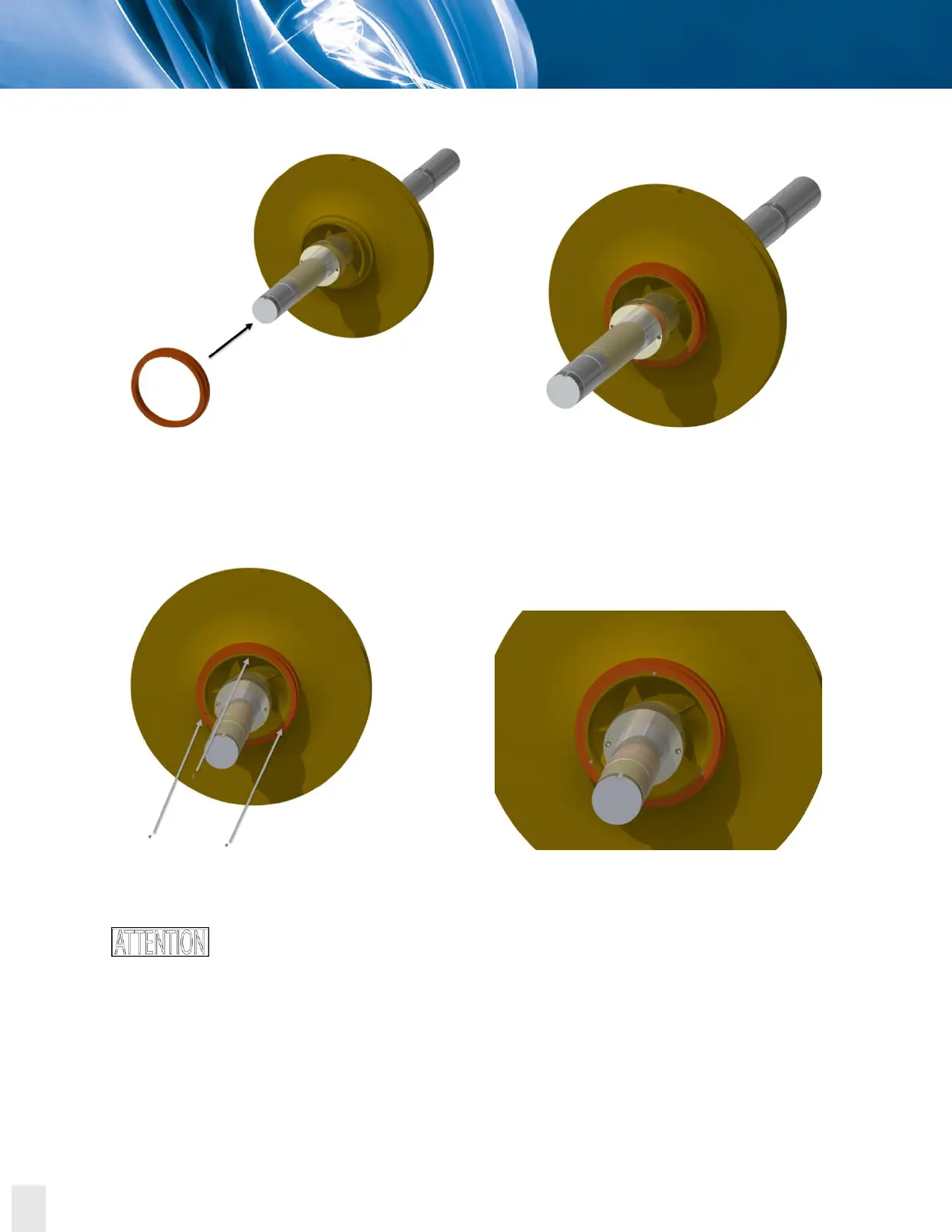

7. Place the impeller wear ring on the impeller from the non-coupling side.
Figure 8.7JD. Inserting the impeller wear ring on the impeller from the non-coupling side.
8. Fix the impeller by matching the set screw holes of the impeller wear ring with the ones in
the impeller and insert the set screws to fix the impeller wear ring.
Figure 8.8JD. Securing the impeller wear ring to the impeller with the set screws.
Lubricate with grease or oil the inner diameter of the impeller wear ring and the
outer diameter of the impeller eye and place the impeller wear ring.
