Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

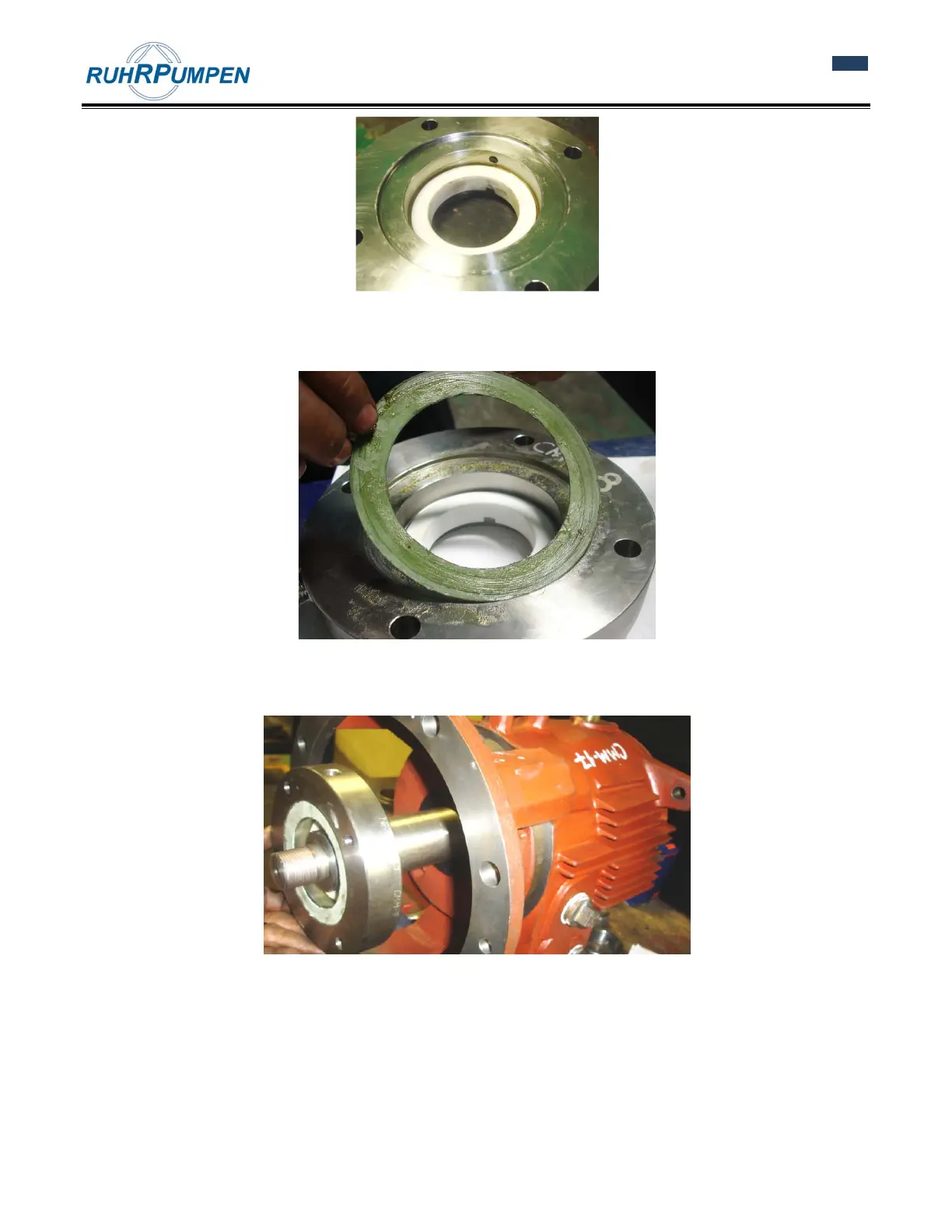

Figure 8.26 Positioning the mechanical seal ring.
b. Grease the joint of the mechanical seal head and install it in the internal diameter.
Figure 8.27 Positioning the mechanical seal joint.
c. Insert the mechanical seal head in the shaft until tight.
Figure 8.28 Positioning the mechanical seal head.
d. Grease the seal’s rotary face and install it in the shaft to the limit with the mechanical seal head.
