Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

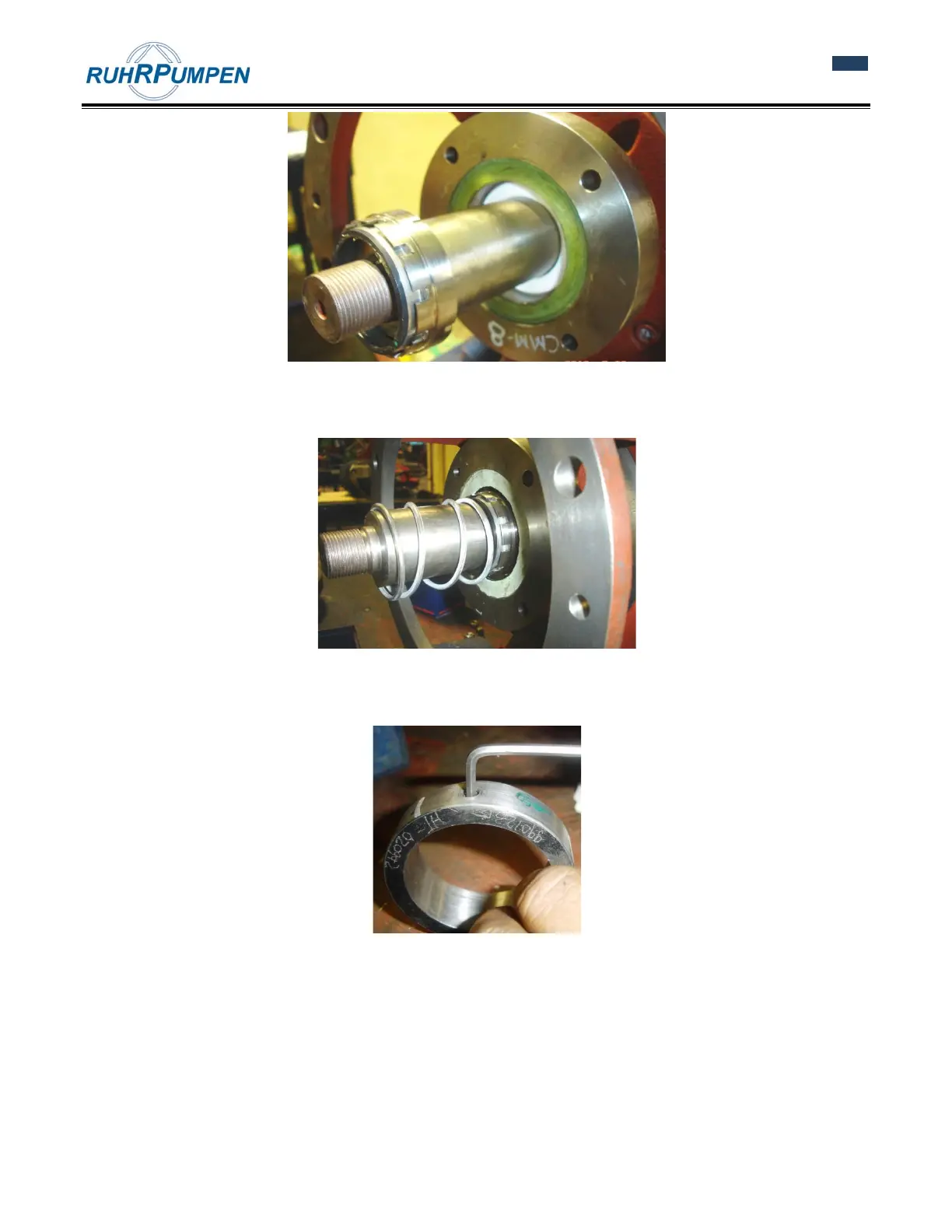

Figure 8.29 Positioning the rotary face.
e. Install the spring in the shaft.
Figure 8.30 Positioning the spring in the shaft.
f. Install the two set screws in the spacer.
Figure 8.31 Positioning the set screws.
g. Install the spacer in the shaft. Place the spacer at 0.3125 (5/16) inch (7.9 mm) from the face of
the shaft.
