Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

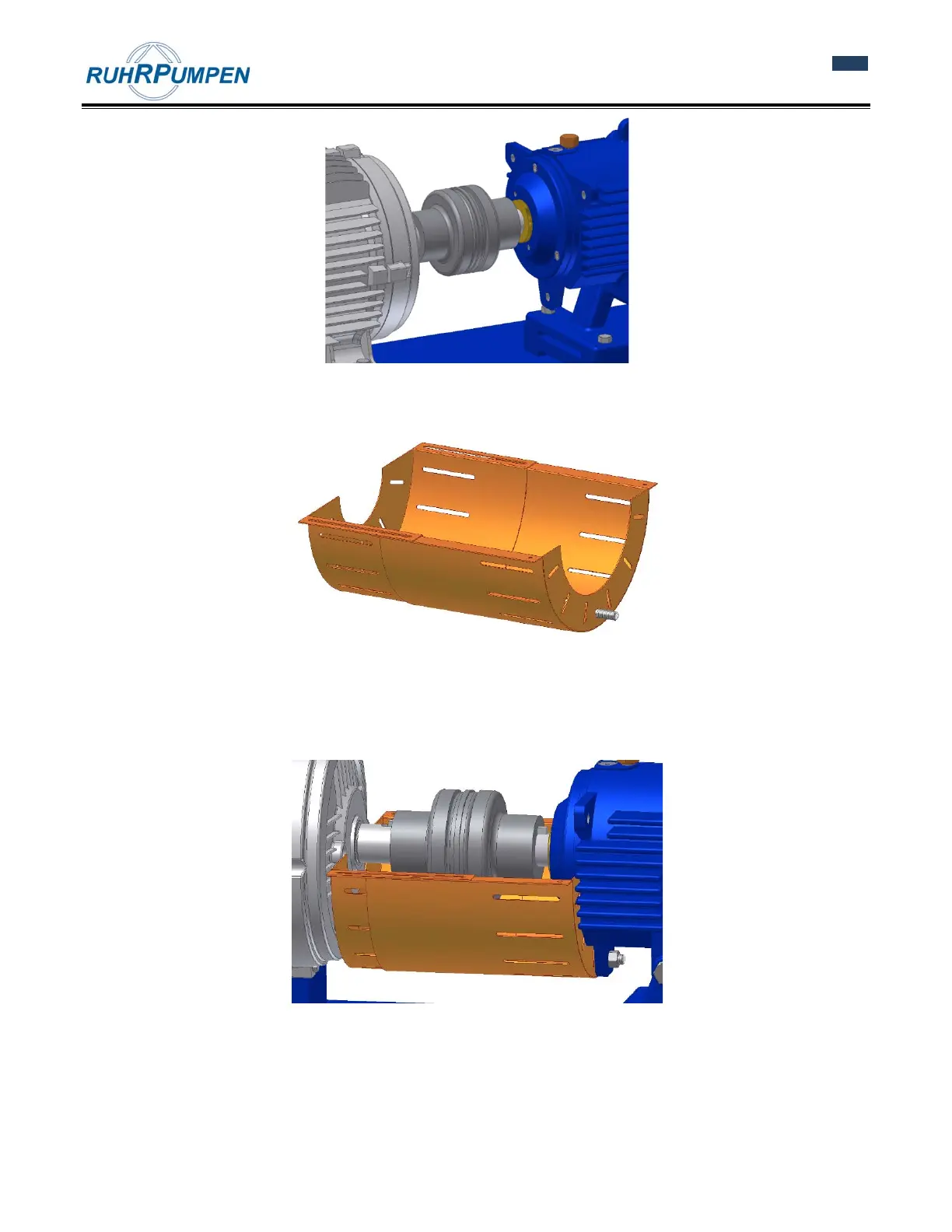

Figure 8.44 Coupling already mounted and aligned.
2. Put together the lower pump side cover with the motor side cover.
Figure 8.45 Putting together the lower pump and the motor side covers.
3. Position both components in the lower side of the coupling. Insert the bolt of the lower cover in one of
the frame supports as shown. Tighten the ½ inch (12.7 mm) nut by hand to support the two
components.
Figure 8.46 Positioning lower components of the coupling guard.
4. Position the second (upper) motor side cover and secure the component with a bolt, a washer, and a nut
on each side. Tighten the bolts by hand to allow both motor side covers to slide to adjust the coupling
guard length.
