Horizontal End Suction Pump for Chemical Process, ASME B73.1-2001
Installation, Operation, and Maintenance Manual – CPP21

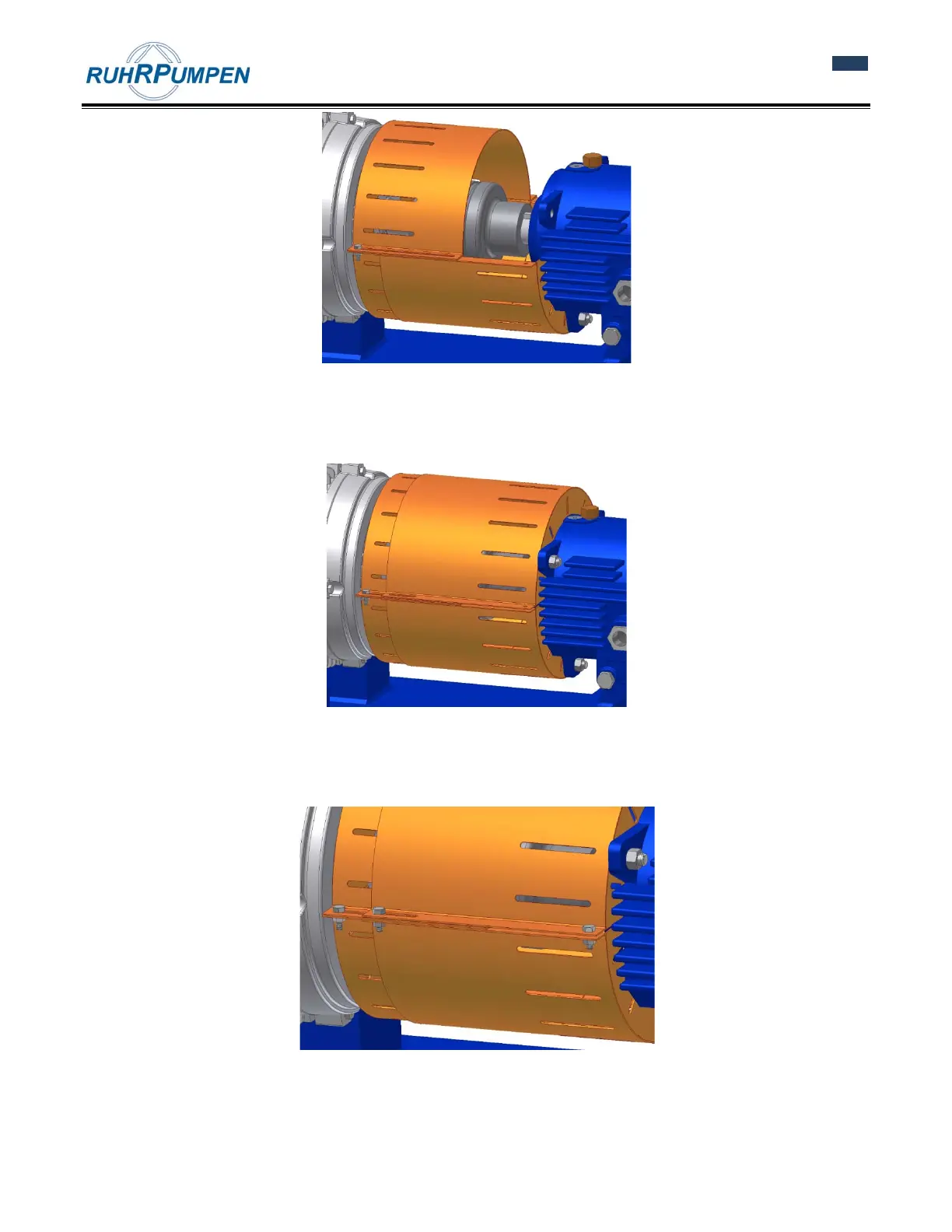

Figure 8.47 Positioning and securing second motor side cover.
5. Position the pump side upper cover and insert the two bolts in the upper frame supports. Install the
nuts to secure the coupling guard assembly and tighten by hand.
Figure 8.48 Positioning and securing upper pump side cover.
6. Position the bolts, washers, and nuts in both the slot and hole on each side of the pump side covers and
tighten by hand.
Figure 8.49 Positioning bolts, washers, and nuts on the upper and lower pump side covers.
