6. AXES STAKE-OUT
This session is to introduce the stake-out of the
point by entering the offset to a baseline.
There’re 2 options to define the baseline. One is
to define by station point and a known bearing
angle (0°00’00”), one is to define by two new
points.
Press F1 or F2 to select.
6.1 Stake Out of One Side on the Axes

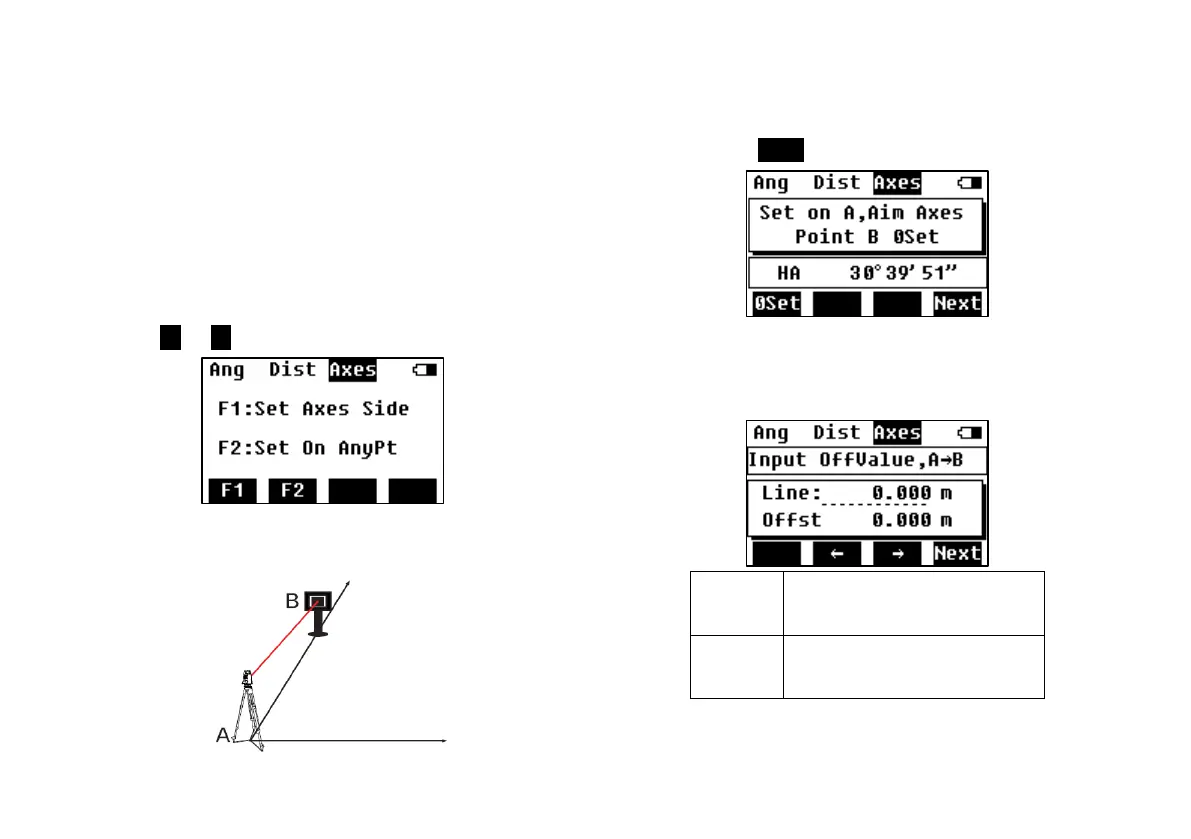

Step 1: Set the theodolite at Point A.
Step 2: Aim at the prism which is set at Point B
and press OSET to set it to 0°.
Step 3: Input the distance value of the line along
Point A to B, and the offset value.
Line
Offset value along the axes of
Point A to B.
Offst
Offset value perpendicular to
the axis.
