Hardware Installation and Reference Guide Product Overview
12
(With Package)
Device operation in a residential environment may cause radio interference.
Product Appearance
The RG-ES118S-LP provides sixteen 10/100Base-TX auto-sensing Ethernet ports, two 1000Base-X SFP combo ports, a
port mode switchover button and LED indicators on the front panel, and a power socket and a grounding pole on the back
panel.

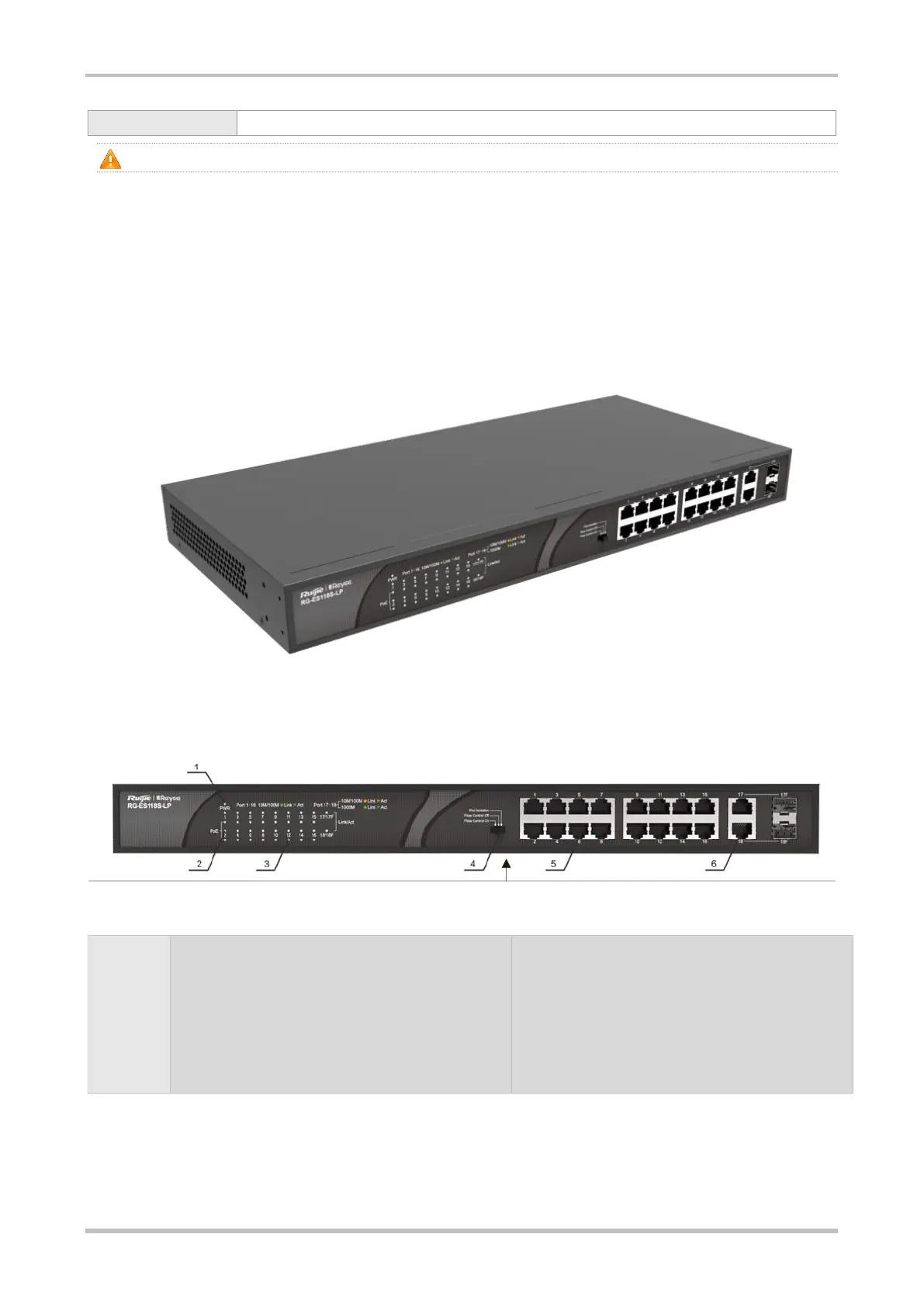

Figure 1-4 Appearance of the RG-ES118S-LP
Front Panel
Figure 1-5 Front Panel of the RG-ES118S-LP
Note:
1. System status LED
2. Port status LED
3. PoE status LED
4. Port mode switchover button
5. 10/100Base-TX auto-sensing Ethernet port
6. 10/100/1000Base-T combo port
7. Nameplate on the bottom of the device
Back Panel
Figure 1-6 Back Panel of the RG-ES118S-LP
7
