Ruijie Reyee RG-ES1 Series

Hardware Installation and Reference Guide Product Overview
13

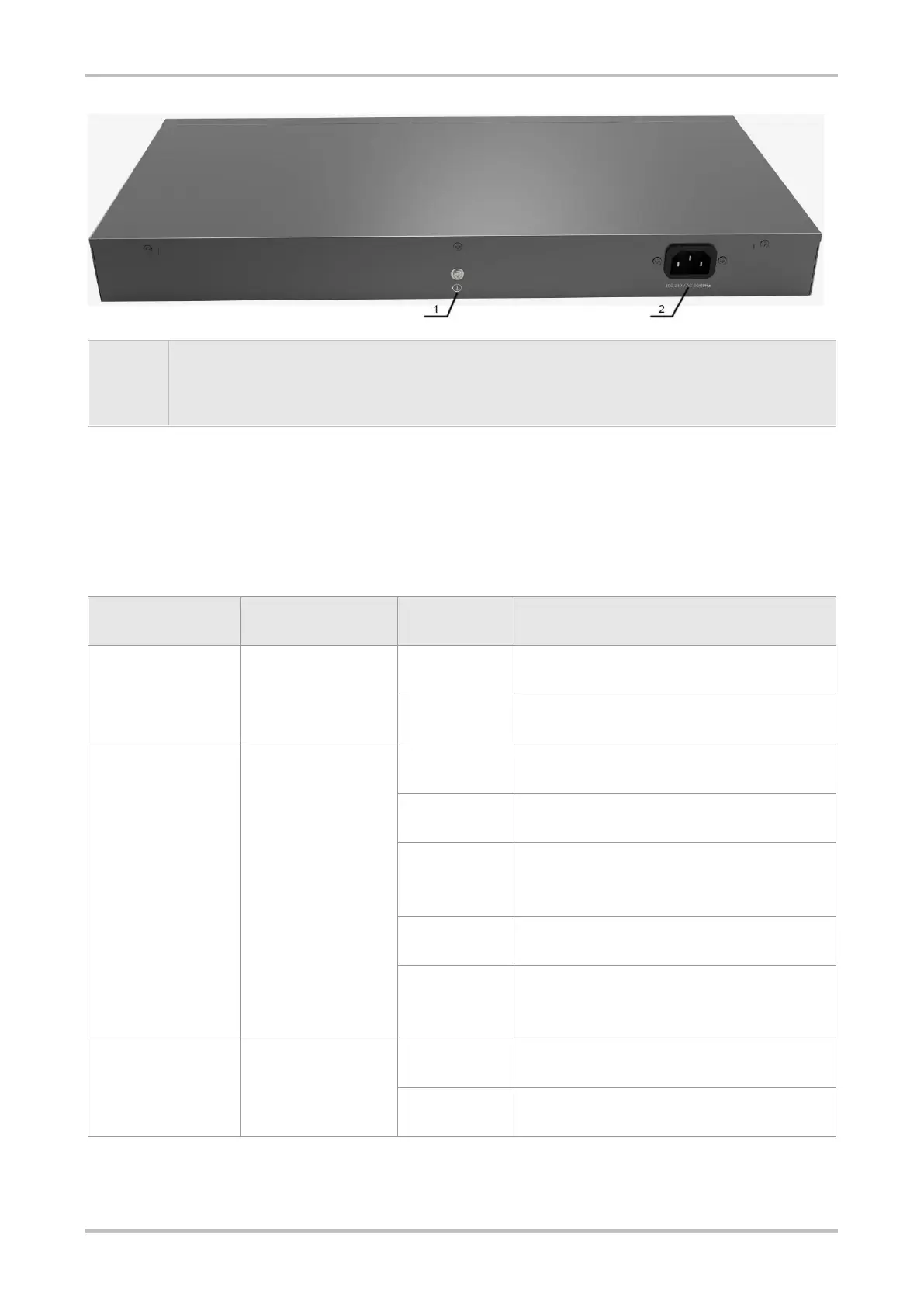

Note:
1. Grounding pole
2. AC power socket
Heat Dissipation
The RG-ES118S-LP adopts fans for heat dissipation, thereby ensuring normal operation. You must reserve 10 cm distance
space at both sides and the back plane of the cabinet to allow airflow. It is recommended that you clean the RG-ES118S-
LP once every three months to avoid dust from blocking vents.
LEDs
LED
Panel Identification
State
Meaning
System status LED
PWR
Off
The switch is powered off.
Solid green
The switch is operational.
RJ45 port status LED
Link/ACT (1–16)
Off
The port is not connected.
Solid green
The port is connected at a rate of 10/100 Mbps.
Blinking green
The port is receiving or sending traffic at a rate of
10/100 Mbps.
Solid orange
A 10/100 Mbps link is established on the port.
Blinking orange
The port is receiving and sending data at 10/100
Mbps.
Combo port LED
Link/ACT
(17/17F, 18/18F)
Off
The port is not connected.
Solid orange
The port is connected at a rate of 100 Mbps.
