Hardware Installation and Reference Guide Appendix C Cabling Recommendations in Installation
ii
Cables of different types (such as power cords, signal cables, and ground cables) should be separated in cabling and
bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, maintain a space
of at least 30 mm for power cords and signal cables.
The binding rack and cabling slot inside and outside the cabinet should be smooth, without sharp corners.
The metal hole traversed by cables should have a smooth and fully rounding surface or an insulated lining.
Proper buckles should be selected to bundle up cables. It is forbidden to connect two or more buckles to bundle up
cables.

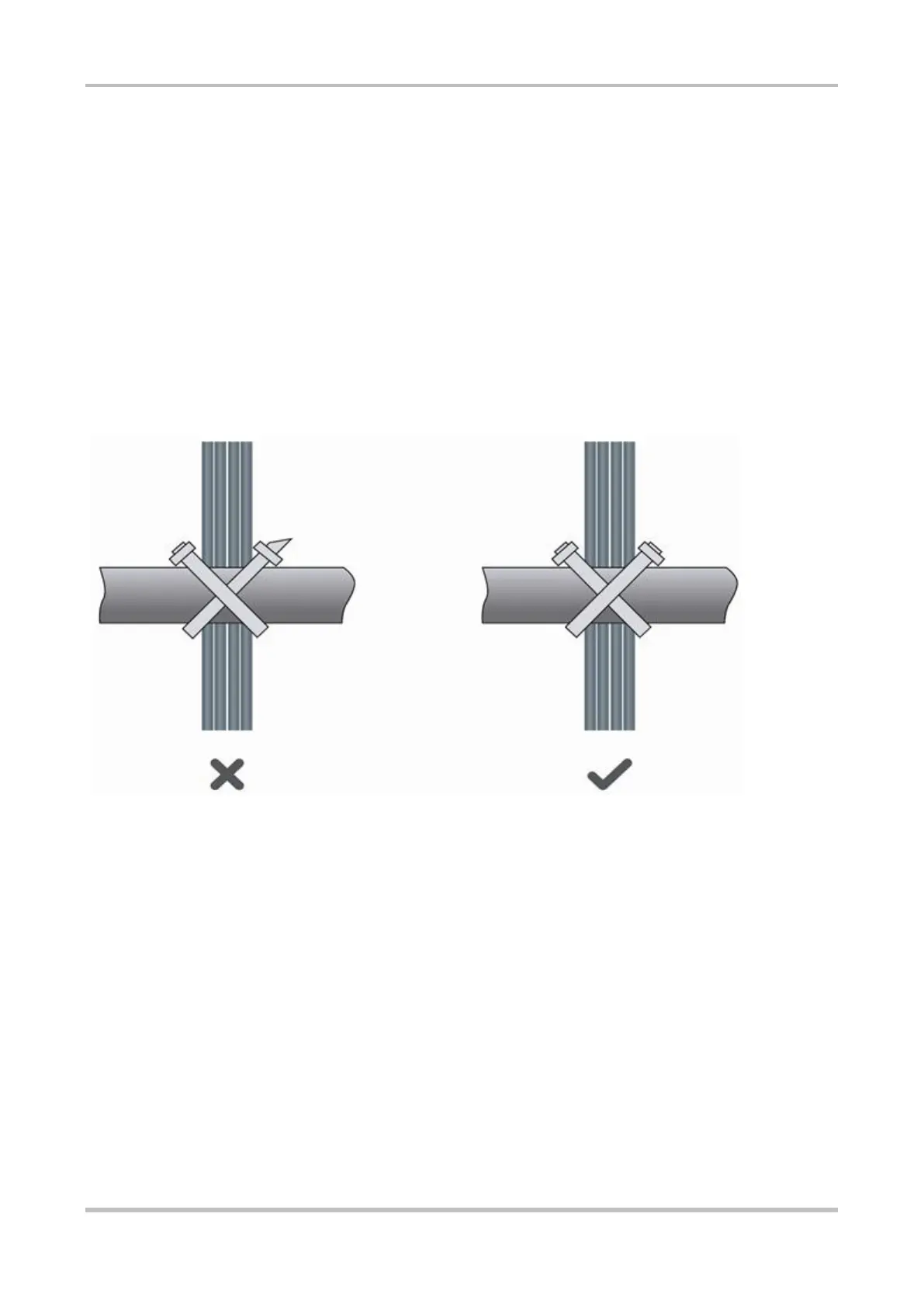

After bundling up cables with buckles, you should cut off the remaining part. The cut should be smooth and trim,
without sharp corners, as shown in Figure D-2.
Figure D-2 Bundling Up Cables (2)
When cables need to bend, first bundle them up. However, the buckle cannot be bundled within the bending area.
Otherwise, significant stress may be generated in cables, breaking cable cores.
Figure D-3 Bundling Up Cables (3)
