Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the
cabinet or cabling slot. The proper position will not affect device running or cause device or cable damage during
commissioning.
Power cords cannot be bundled on guide rails of moving parts.
Power cables connecting moving parts such as door grounding wires should be reserved for access after being
assembled. When the moving part reaches the installation position, the remaining part should not touch heat sources,
sharp corners, or sharp edges. If heat sources cannot be avoided, high-temperature cables should be used.
When using screw threads to fasten cable terminals, the bolt or screw must be tightly fastened, and anti-loosening
measures should be taken, as shown in Figure D-4.

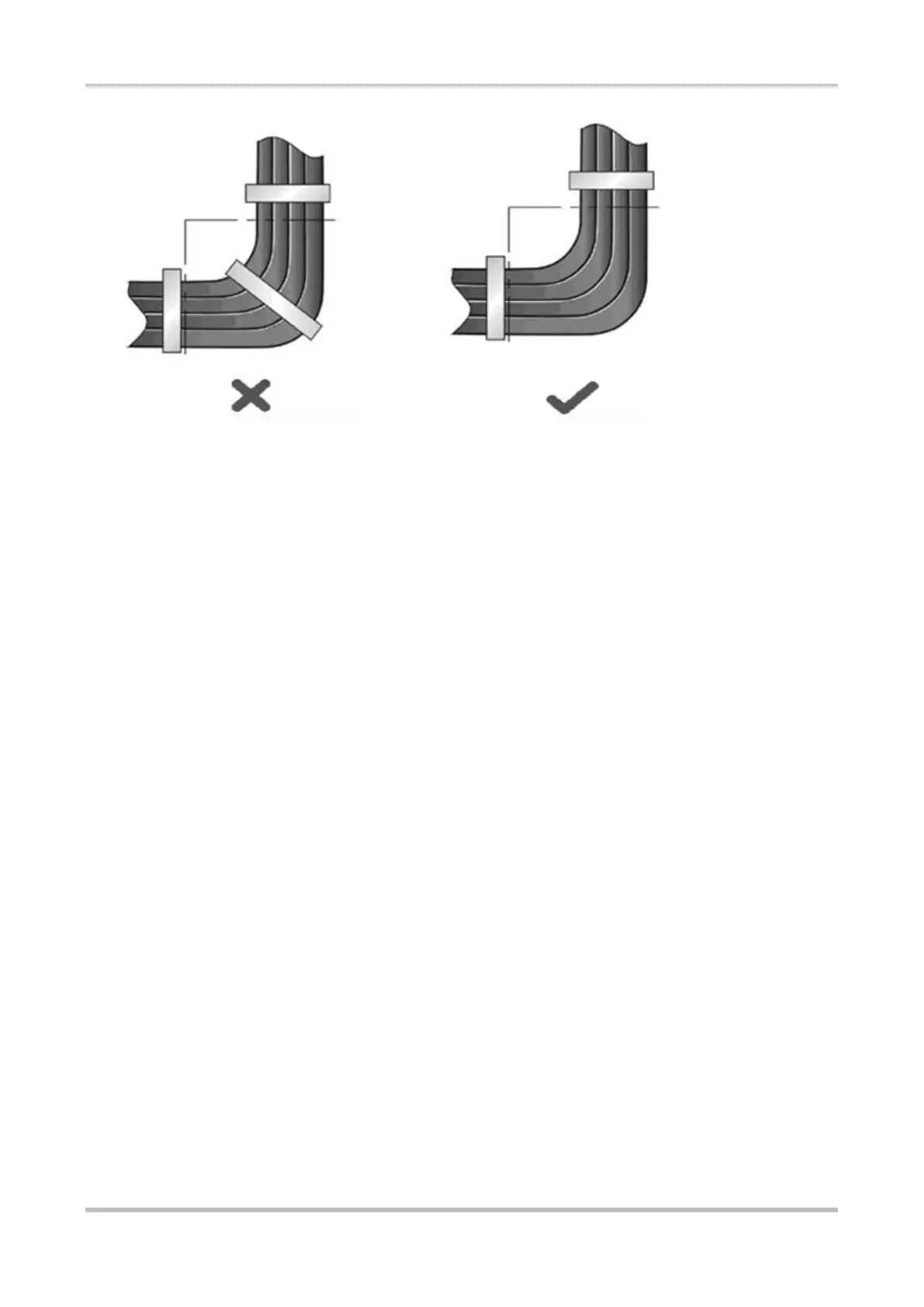

Figure D-4 Cable Fastening
