Hardware Installation and Reference Guide Product Overview
18
2. Flow Control Off
3. Port Isolation
When port isolation is enabled, ports 1-22 are isolated from each other, but can communicate
with ports 23 and 24.
4. Extend Data Transmission-10Mbps: When this mode is enabled, ports 1–8 have a reduced
speed of 10 Mbps, with a transmission distance of up to 250 m. If compatibility is considered,
some ports may not deliver such a transmission distance.
Accessing Optical
Module Information
280 mm x 126 mm x 44 mm (11.02 in. x 4.96 in. x 1.73 in.)
Device operation in a residential environment may cause radio interference.
Product Appearance
The RG-ES124GD provides twenty-four 10/100/1000Base-T auto-sensing Ethernet ports, a port mode switchover button
and LED indicators on the front panel, and a power socket and a grounding pole on the back panel.

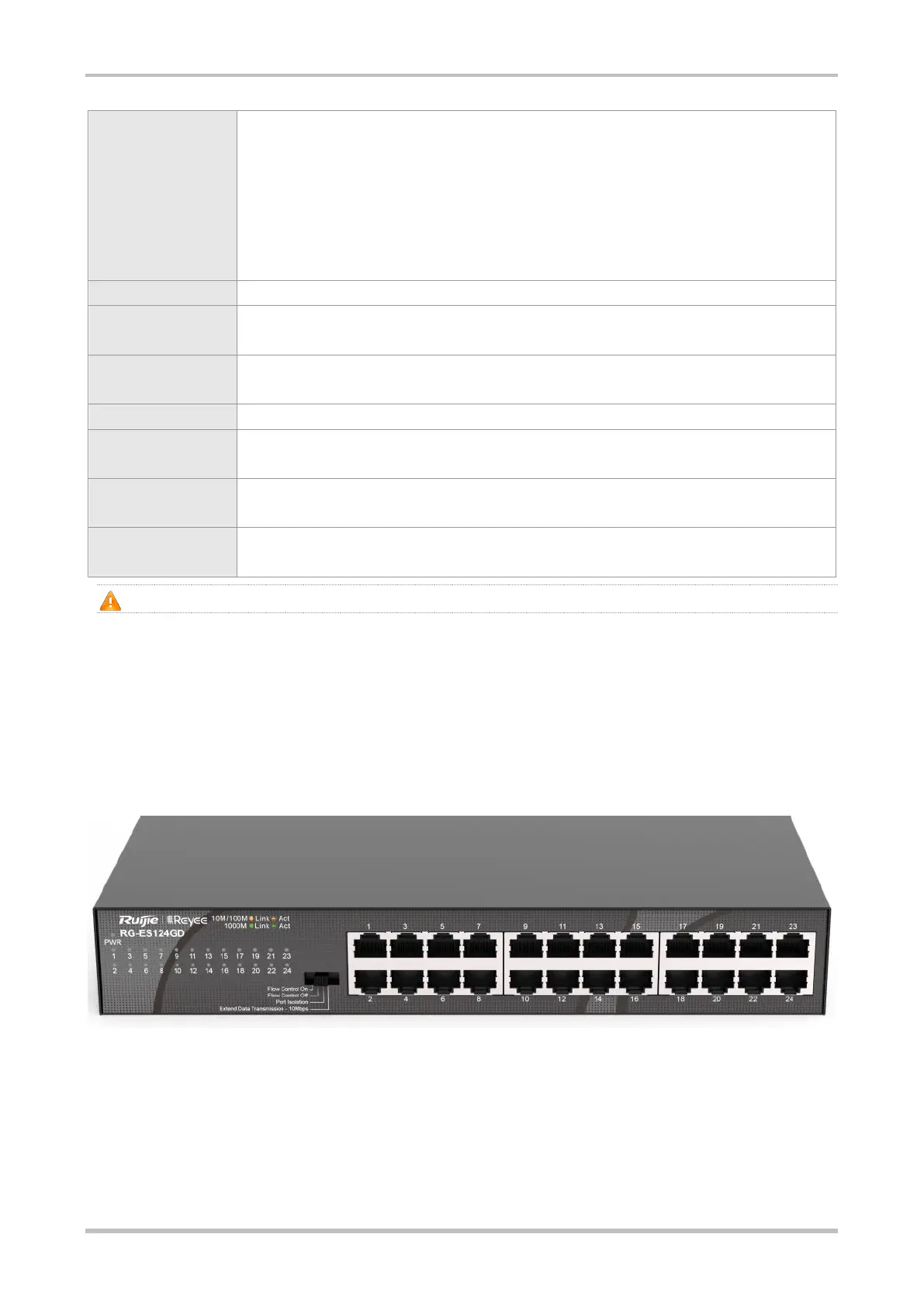

Figure 1-10 Appearance of the RG-ES124GD
Front Panel
Figure 1-11 Front Panel of the RG-ES124GD
