Blinking
The port is transmitting or receiving data.
SFP28 Port LED
1F-48F
Off
The port is not connected.
Solid green
The port is connected at 1/10/25 Gbps.
Blinking green
The port is transmitting or receiving data at 1/10/25
Gbps.
QSFP28 Port LED
49F-56F
Off
The port is not connected.
Solid green
The port is connected at 40/100 Gbps.
Blinking green
The port is transmitting or receiving data at 40/100
Gbps.
Heat Dissipation
The working temperature of the RG-S6150-48VS8CQ-X switch is 0°C to 45°C, or 32°F to 113°F, and the heat
dissipation design needs to ensure the stability, safety and maintainability in such environment. The RG-S6150-
48VS8CQ-X adopts fan ventilation and forced convection to ensure the device can work normally in specified
environment. Dust the device every three months to avoid blocking the ventilation openings.
The RG-S6150-48VS8CQ-X supports M1EFAN II-F, and provides fan speed regulation, fan failure warning, and
fan hot swapping.

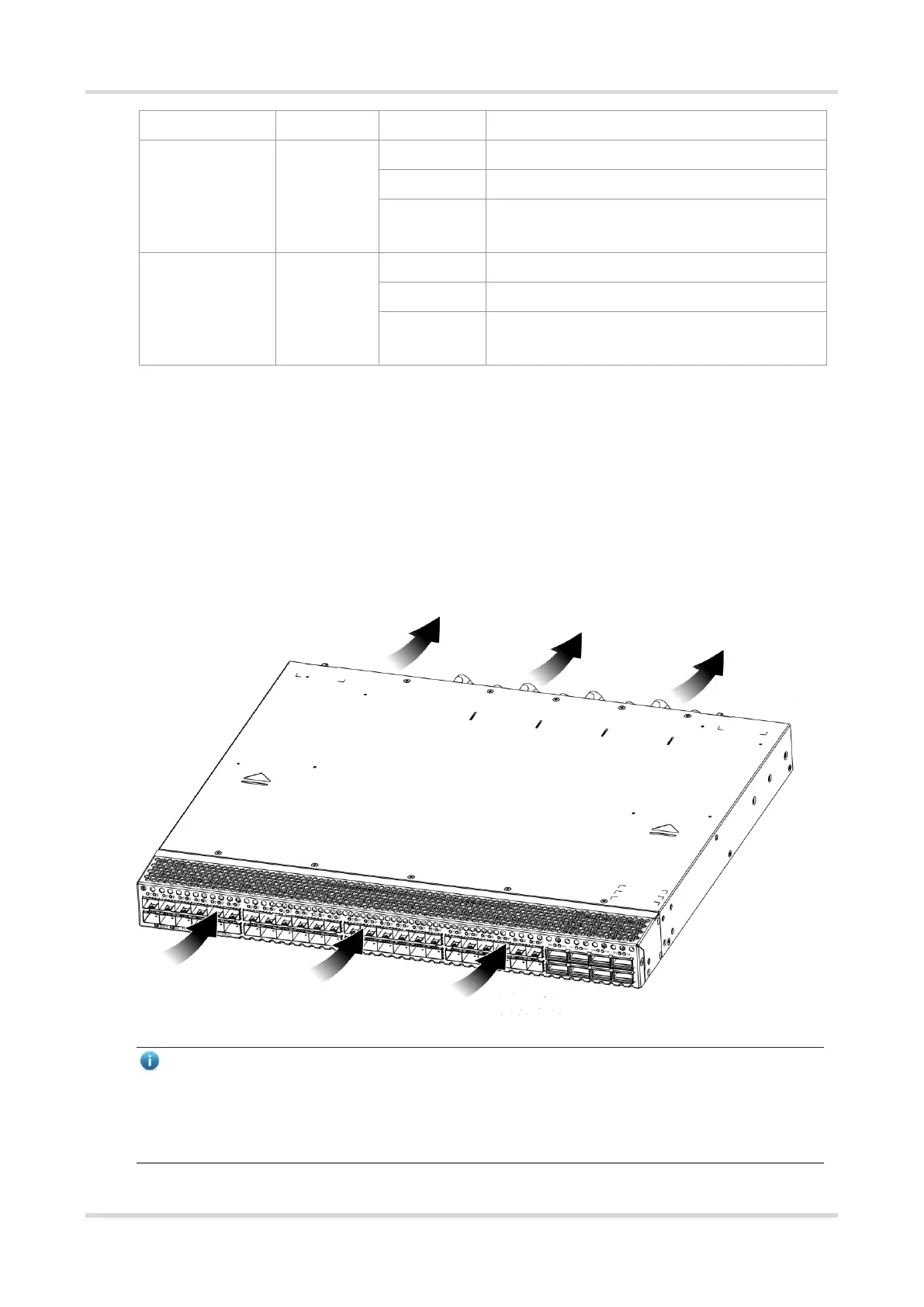

Figure 1-5 Airflow Direction of the RG-S6150-48VS8CQ-X
Note
Maintain a minimum clearance of 20 cm (7.87 in.) around the switch for ventilation.
It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan
module slots to ensure ventilation and heat dissipation and avoid dusts.
Out
In
