Ruijie RG-S6150-X Series User Manual

Hardware Installation and Reference Guide Product Overview
11

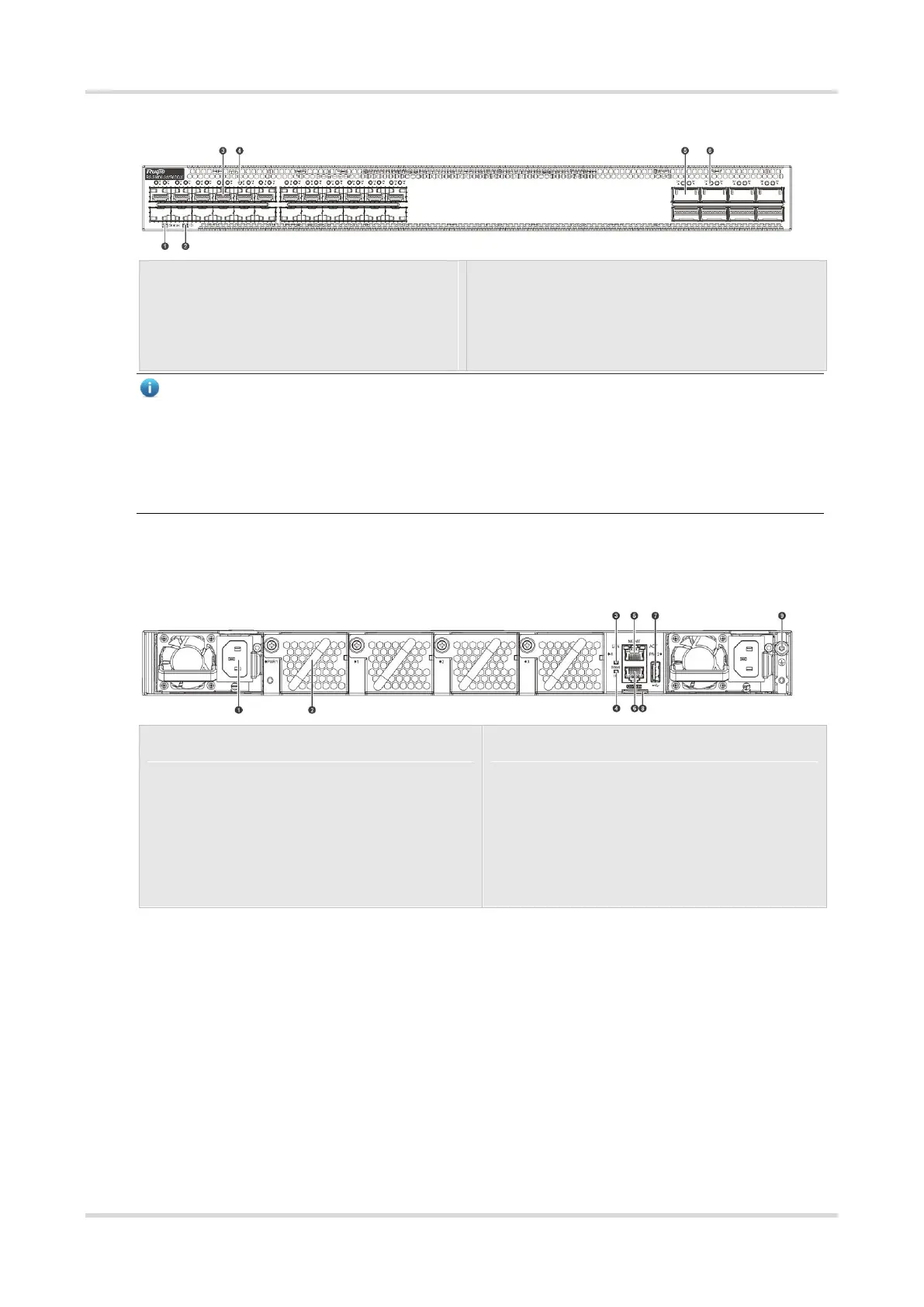

Figure 1-7 Front Panel of the RG-S6150-24VS8CQ-X
1. System Status LED
2. Locator LED
3. SFP28 Port
4. SFP28 Port LED
5. QSFP28 Port
6. QSFP28 Port LED
Note
The RG-S6150-24VS8CQ-X supports 100GE QSFP28 module, 25GE SFP28 module, 10GE SFP+ module
and GE SFP+ module. For specific modules and specifications, refer to Appendix 7.2.
The speed of 24VS port is set to 10 Gbps by default. A license is needed for the port speed of 25 Gbps. The
24VS port does not support FEC-RS.
Back Panel
Figure 1-8 Back Panel of the RG-S6150-24VS8CQ-X
1. Power Module Slot
2. Fan Module Slot
3. System Status LED
4. Locator LED
5. MGMT Port
6. Console Port
7. USB 2.0 Port
8. Assess Tag
9. Grounding Stud
Asset Tag
The asset tag is at the bottom right corner of the switch back panel. The tag is movable and can be withdrawn
from the device. Users can mark the information such as asset name, category, code and registration date on
the tag which helps to improve asset management accuracy and efficiency.

Ruijie RG-S6150-X Series Specifications

General

Brand	Ruijie
Model	RG-S6150-X Series
Category	Switch
Language	English
