Ruijie RG-S6150-X Series User Manual

Hardware Installation and Reference Guide Product Overview
5
Note
The 25G/100G Ethernet port of the RG-S6150-48VS8CQ-X switch does not support direct attach copper
(DAC).
The 48VS port license supports 25G port and does not support FEC-RS.
Product Appearance
The hardware of the RG-S6150-48VS8CQ-X includes the chassis, the power supply system and the heat
dissipation system.
 The power supply system: Provides two power supply slots, which support 1+1 power supply redundancy.
You are advised to configure power supply redundancy.
 The heat dissipation system: Provides four fan module slots, which support 3+1 fan redundancy. You are
advised to configure all fans redundancy.

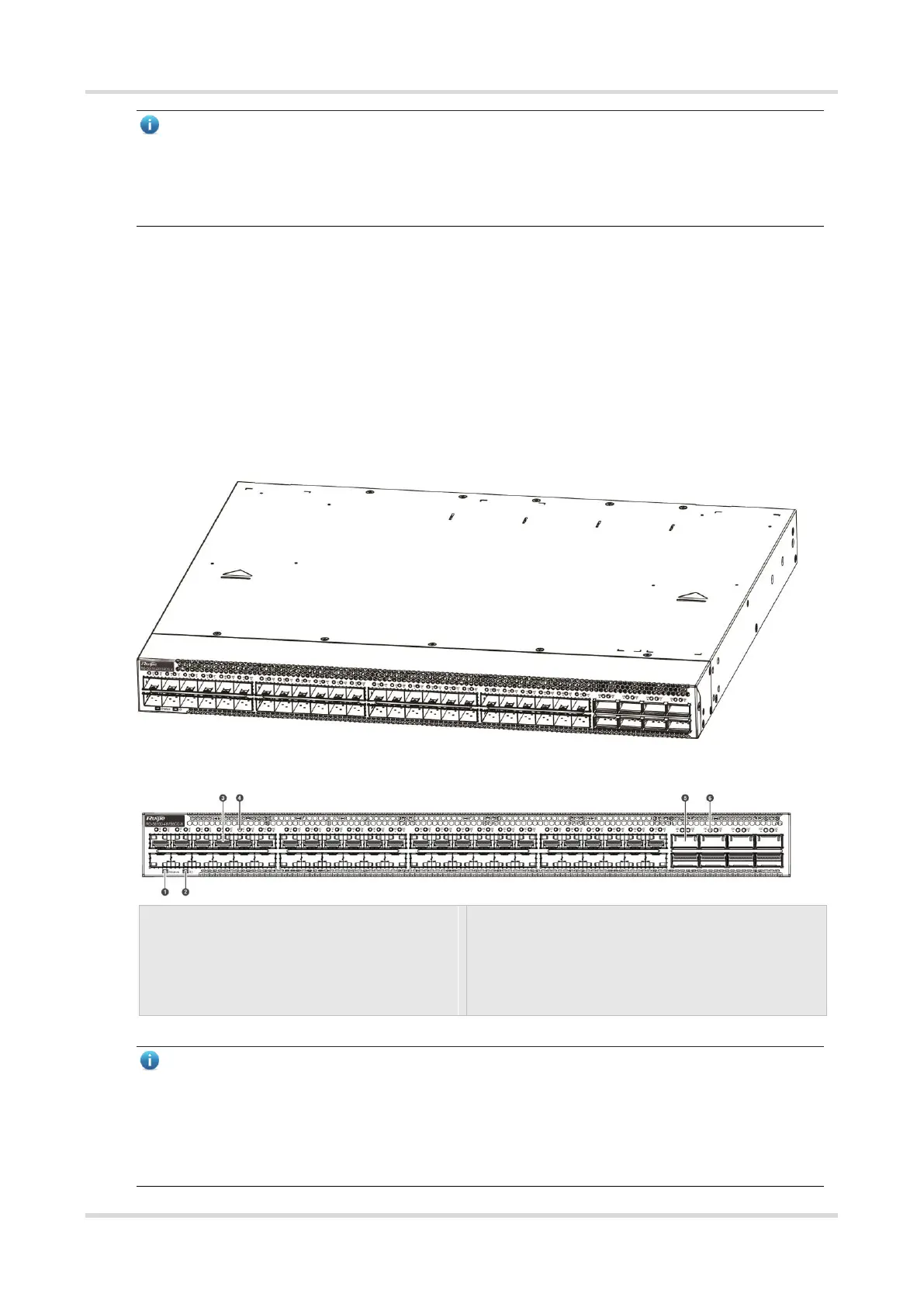

Figure 1-1 Appearance of the RG-S6150-48VS8CQ-X
Figure 1-2 Front Panel of the RG-S6150-48VS8CQ-X
1. System Status LED
2. Locator LED
3. SFP28 Port
4. SFP28 Port LED
5. QSFP28 Port
6. QSFP28 Port LED
Note
The RG-S6150-48VS8CQ-X supports 100GE QSFP28 module, 25GE SFP28 module, 10GE SFP+ module
and GE SFP+ module. For specific modules and specifications, refer to Appendix 7.2.
The speed of 48VS port is set to 10 Gbps by default. A license is needed for the port speed of 25 Gbps. The
48VS port does not support FEC-RS.
