Back Panel

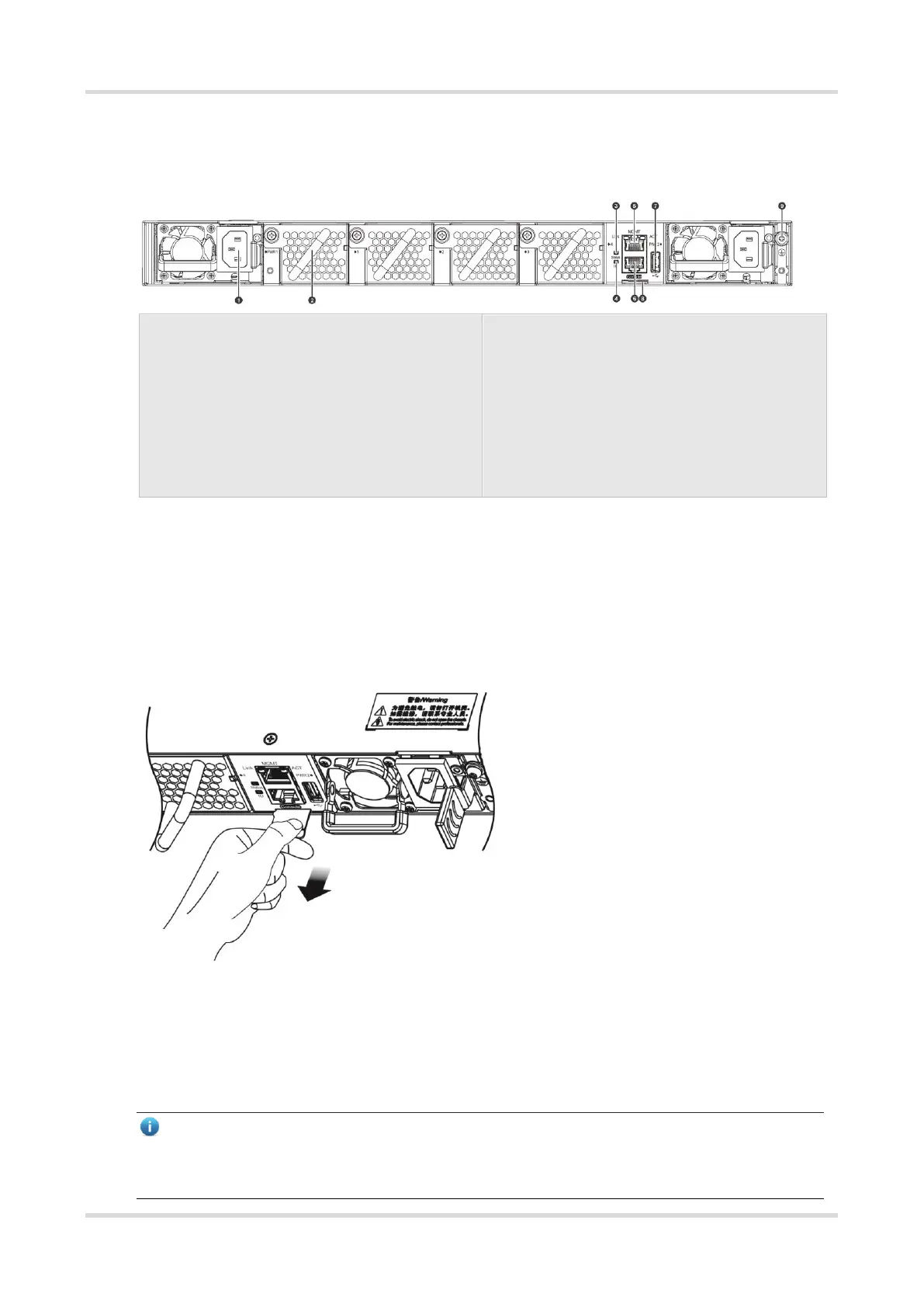

Figure 1-3 Back Panel of the RG-S6150-48VS8CQ-X
1. Power Module Slot
2. Fan Module Slot
3. System Status LED
4. Locator LED
5. MGMT Port
7. USB 2.0 Port
8. Assess Tag
9. Grounding Stud
Asset Tag
The asset tag is at the bottom right corner of the switch back panel. The tag is movable and can be withdrawn
from the device. Users can mark the information such as asset name, category, code and registration date on
the tag which helps to improve asset management accuracy and efficiency.
Figure 1-4 Asset Tag of the RG-S6150-48VS8CQ-X
External Ports
The RG-S6150-48VS8CQ-X provides the following ports:
Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions,
warnings and other diagnostic messages. Therefore, it is more convenient to upgrade the software version
of the switch on line and save the log information.
Note
To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time,
the local USB port is compatible with most of the USB controllers except some USB flash disks.
