22
4.4.3 Antenna Cable Connection

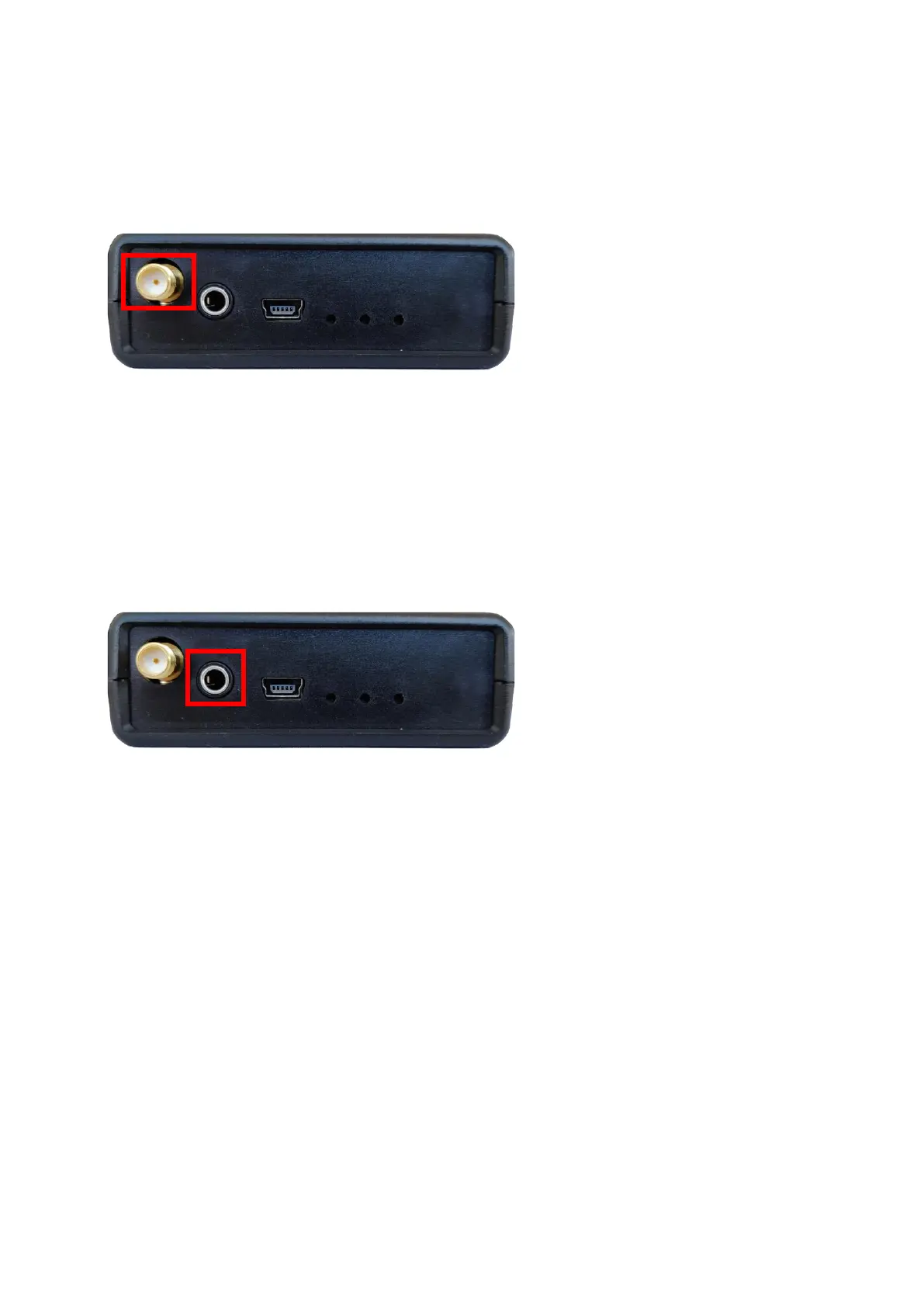

Connect the antenna cable to the antenna port as shown in the image below. Make sure that the
cable is fully twisted onto the port.
4.4.4 Audio Cable Connection
Connect your audio equipment using a 3.5 mm audio cable as shown in the image below. The cable
can be connected in only one way.
