Ryobi RM300E - Leveling the Cutting Deck

23
Maintenance
2
1 2
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1
p.20
3
4
< 3.1 mm

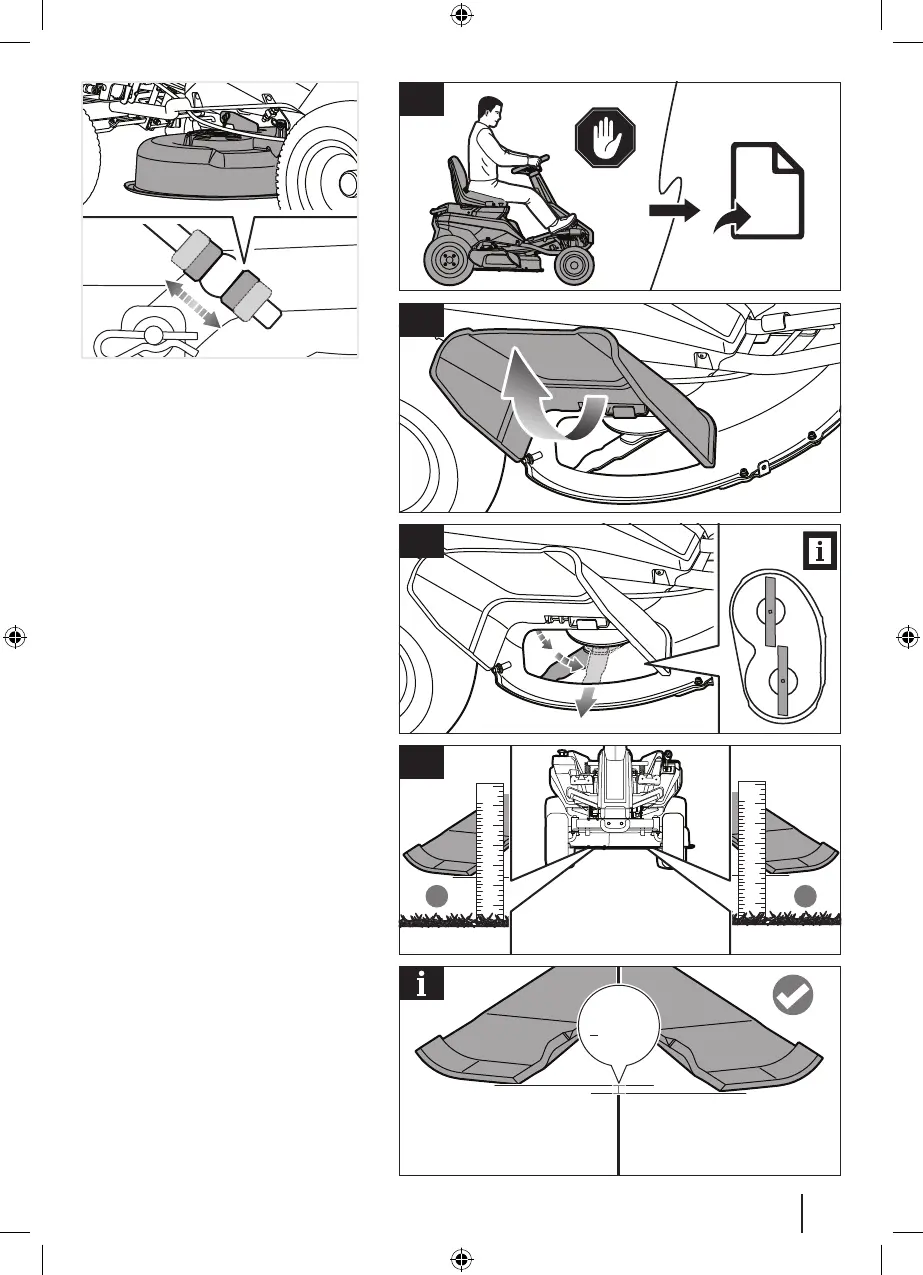

LEVELING THE CUTTING DECK
1. Engage the parking brake, stop the
blades, turn off the product, and remove
the start key.
2. Lift the side discharge chute
3. Turn the blades so that the ends point
towards the sides of the mower.
4. On the outside edge of each blade,
measure the distance from the bottom
edge of the side of the blade to the
ground.
NOTE: The distance between the two sides
should be less than or equal to 3.1 mm.
