900 Convertible Top Troubleshooting Guide
b. 5th bow potentiometer will not reach high limit. “Check Soft Top” ap-
pears on SID.
Reprogram top according to PSI
04/97-0758.
c. Tonneau motor disengaged?
Remove the right taillight assembly to inspect the Tonneau motor. Check for proper
engagement of Tonneau motor.

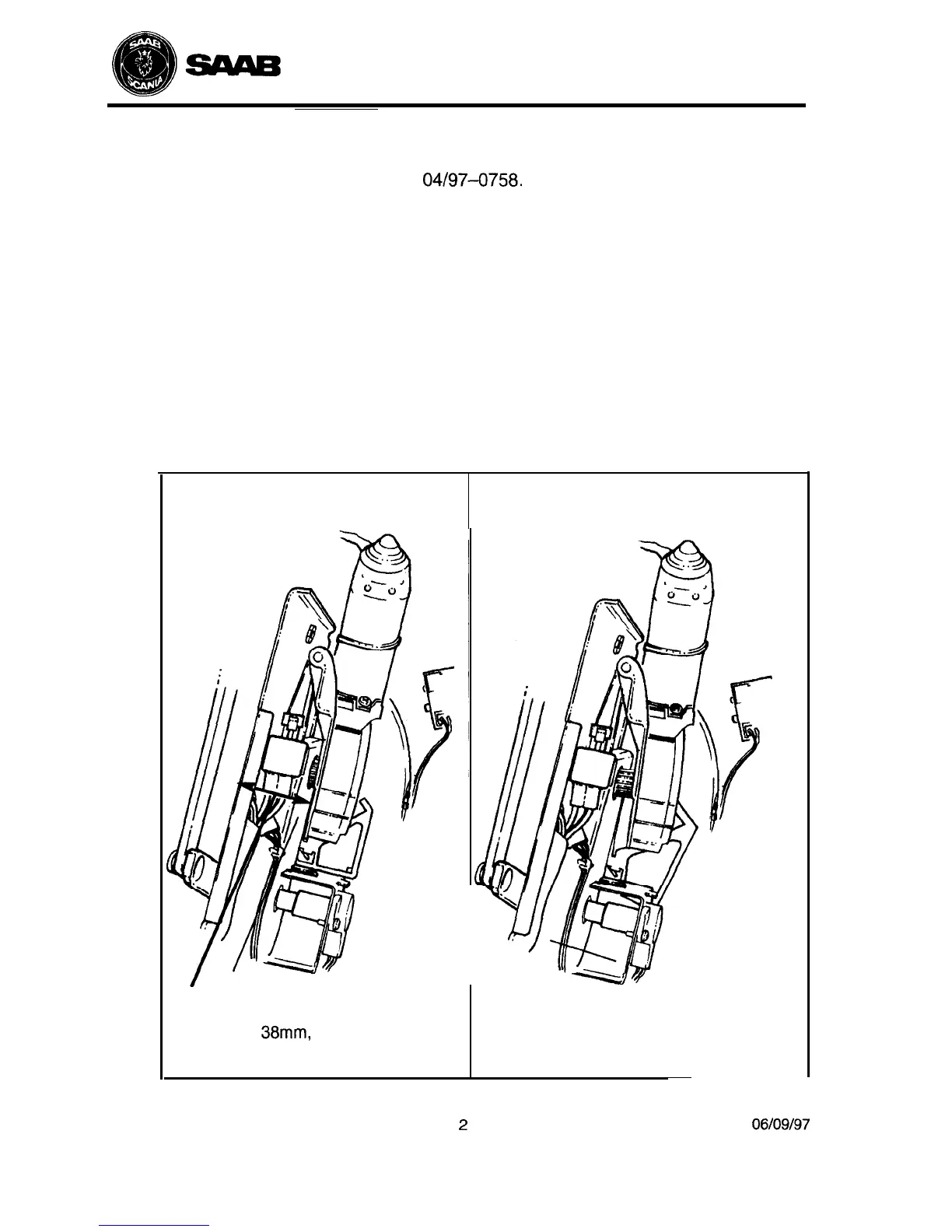

If the dimension shown in the illustration is greater
than 38mm and the Tonneau gears are making ratcheting noise, the Tonneau motor
housing is bent.
If there is insufficient engagement, check for gear damage and
check emergency release handle cable adjustment (described on next page). If
damage to gears or housing is visible, replace the Tonneau motor. See illustration
below.
When the motor is properly engaged, note that the motor mounting plate is
engaged in the slot and that the latch is parallel to the potentiometer bracket.
Good engagement
If Tonneau gears are ratcheting, mea-
sure this dimension. If dimension is
greater than
38mm,
Tonneau motor
housing is bent.
Poor engagement
2
06/09/97
