PSI
04/97-
0753
1.
‘The
top
should be fully raised, the first and 5th bows should be locked from previous step.
2.
Remove the clip securing the luggage compartment
weatherseal
on the LH side. See Figure
18.B
below.
3.
Detach the luggage compartment weatherseal on the LH side. See Figure 18.C below.
4.
Unplug the luggage compartment lighting connectors and fold down the trim. See Figure
18.D
below.
5.
Unplug the three ECM connectors. See Figure 18.E below.
6.
Remove the nuts securing the ECM and lift it out. See Figure 18.F below.
7.
Fit the new ECM in place and tighten the nuts.
8.
Connect the cables to the ECM.
9.
Plug in the luggage compartment lighting connectors.
10. Fold the luggage compartment trim back up and refit the luggage compartment weather-seal
11. Press on the clip securing the luggage compartment trim.
12. Refit the scuff plate.
I
I

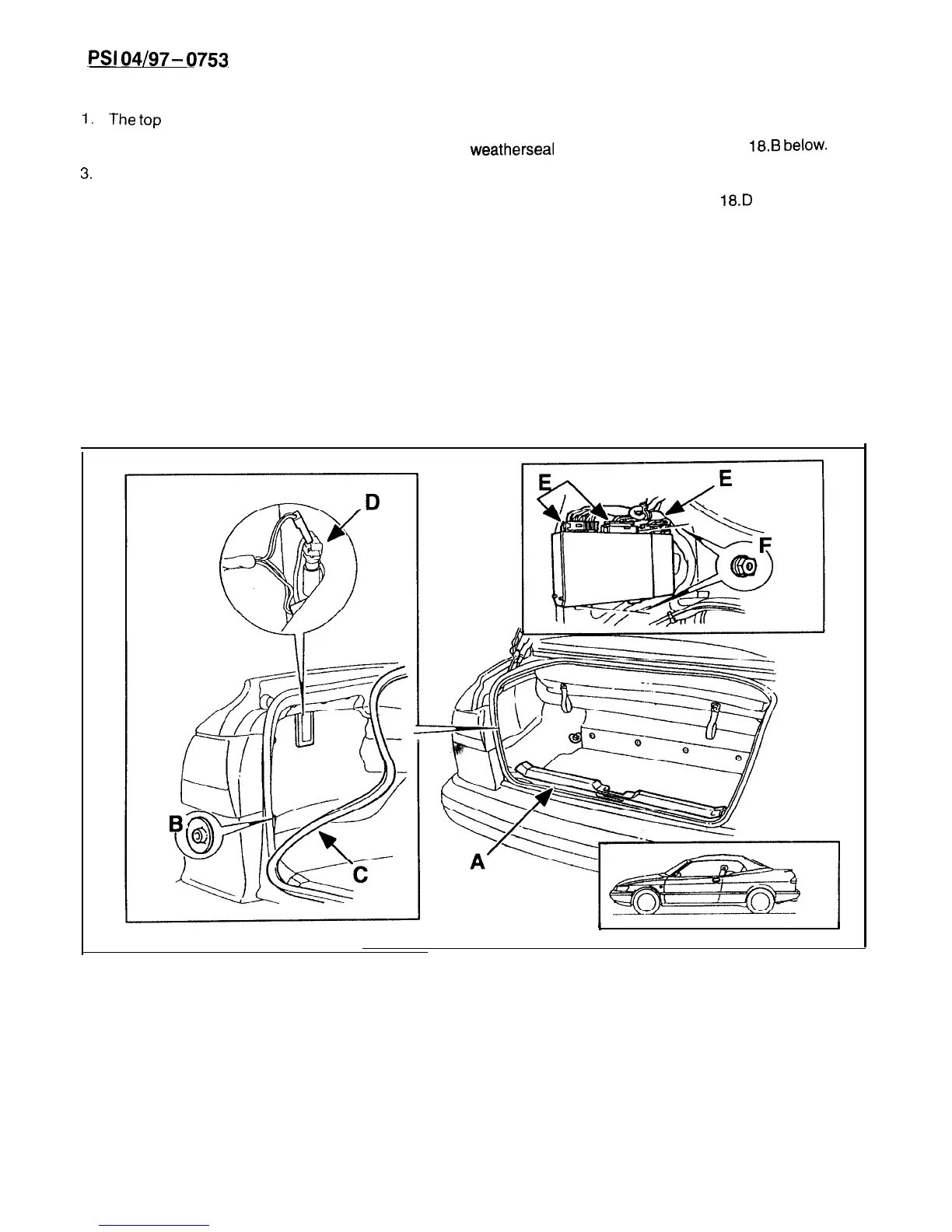

Figure 18. Replacing TSAS ECM
Page 19 of 24
