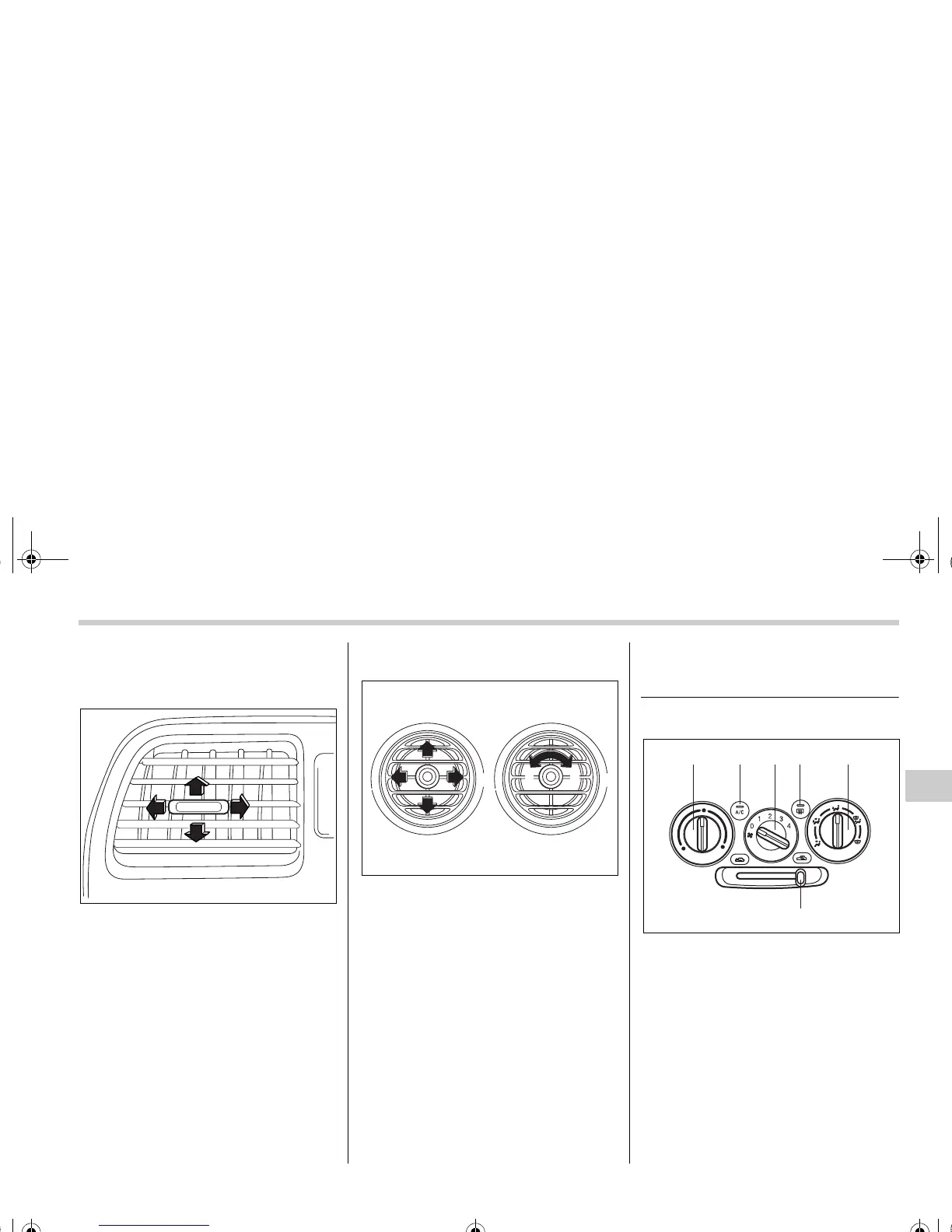

¢ Center and side vents
q Center vents
Move the tab up and down or right and left
to adjust the air flow direction.
q Side vents
1) Open
2) Close
Move the knob in any direction you prefer
to adjust the air flow direction.
To open the vent, turn the knob counter-
clockwise.
To close the vent, turn the knob clockwise.
Manual climate control sys-
tem 3
¢ Control panel
1) Air inlet selection lever
2) Air conditioner button
3) Rear window defogger button (Refer to
the “Rear window defogger button” sec-
tion in chapter 3.)
4) Air flow control dial
5) Fan speed control dial
6) Temperature control dial
q Temperature control dial
This dial regulates the temperature of air
flow from the air outlets over a range from
the blue side (cool) to red side (warm).
