Saab 92X - Fuse Panel Located in the Engine Compartment

12-8 Specifications

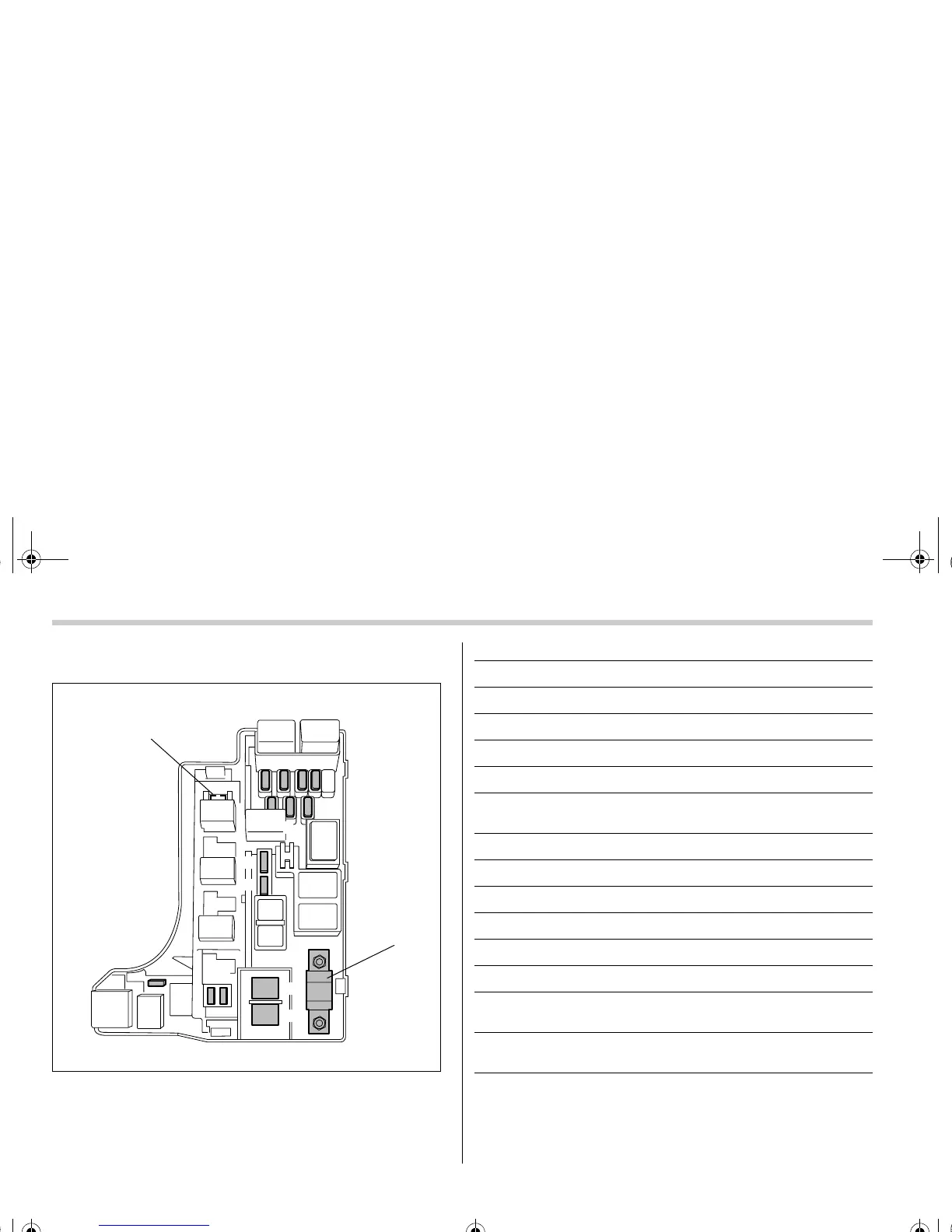

¢ Fuse panel located in the engine compartment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
13
A
B
9
6
5
7
C
3
1 2
4
8
10 11 12
C00107
Fuse panel Fuse rating Circuit
1 20A  Radiator cooling fan (Main)
2 20A  Radiator cooling fan (Sub)
3 30A  ABS motor
4 20A  Rear window defogger
5 15A  Hazard warning flasher
 Horn
6 15A  Turn signal lights
7 10A  Automatic transmission control unit
8 10A  Alternator
9 15A  Headlight (right side)
10 15A  Headlight (left side)
11 20A  Lighting switch
12 20A  Clock
 Interior light
13 10A  Secondary air combination valve
(Turbo models only)
