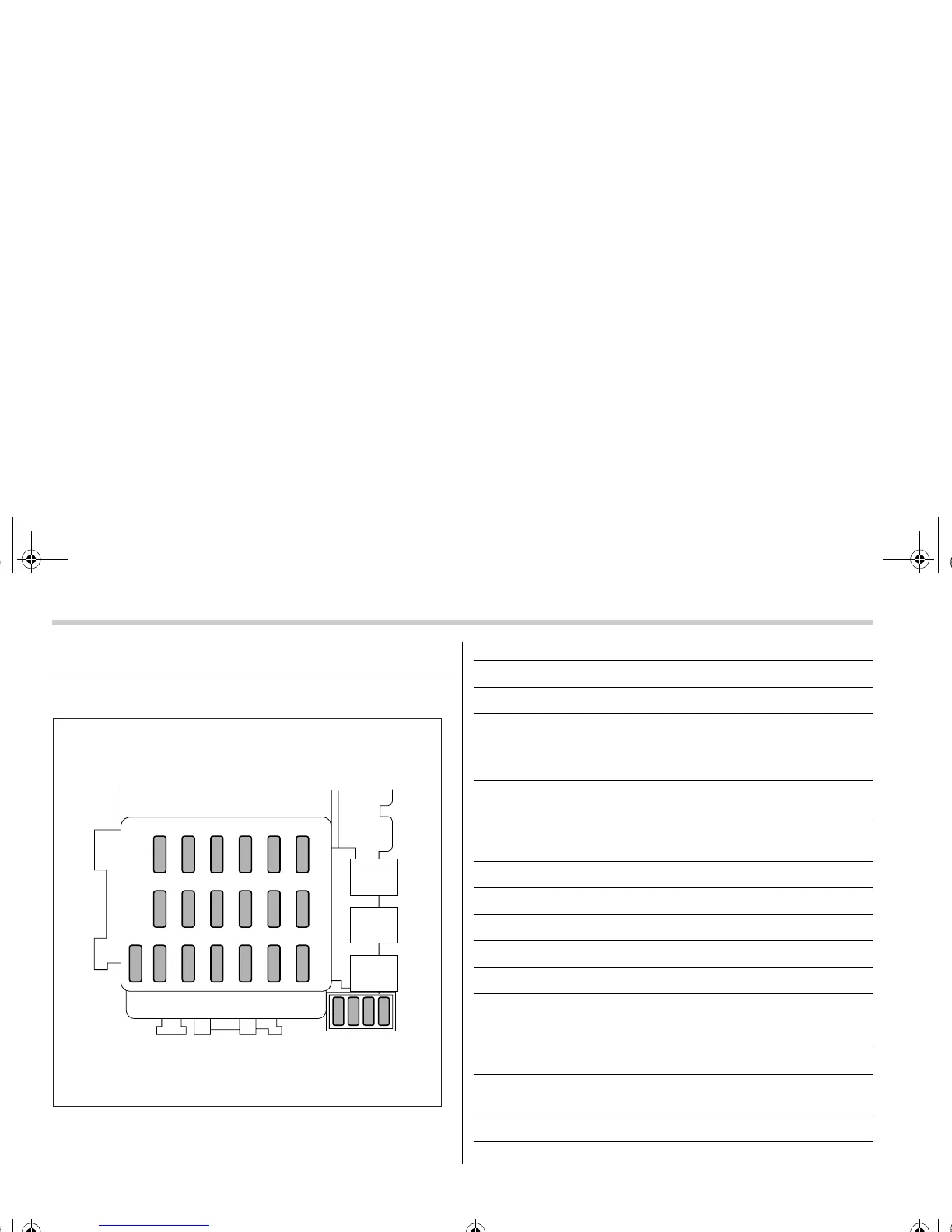

Saab 92X - Fuses and Circuits; Fuse Panel Located Behind the Coin Tray

12-6 Specifications
Fuses and circuits
¢ Fuse panel located behind the coin tray
123456
789101112
1413 15 16 17 18 19
20 21 22 23
C00000
Fuse panel Fuse rating Circuit
1 15A  Heater fan
2 15A  Heater fan
3 15A  Power door lock
 Remote keyless entry
4 20A  Cigarette lighter
 Remote controlled rear view mirrors
5 10A  Tail light
 Parking light
6 15A  SRS airbag
7 15A  Fog light
8 20A  ABS solenoid
9 15A  Radio
10 Empty
11 15A  Engine ignition system
 SRS airbag
 AT control system
12 10A  Illumination brightness control
13 10A  Instrument cluster
 SRS lamp
14 10A  Rear window wiper and washer
