11-38 Maintenance and service

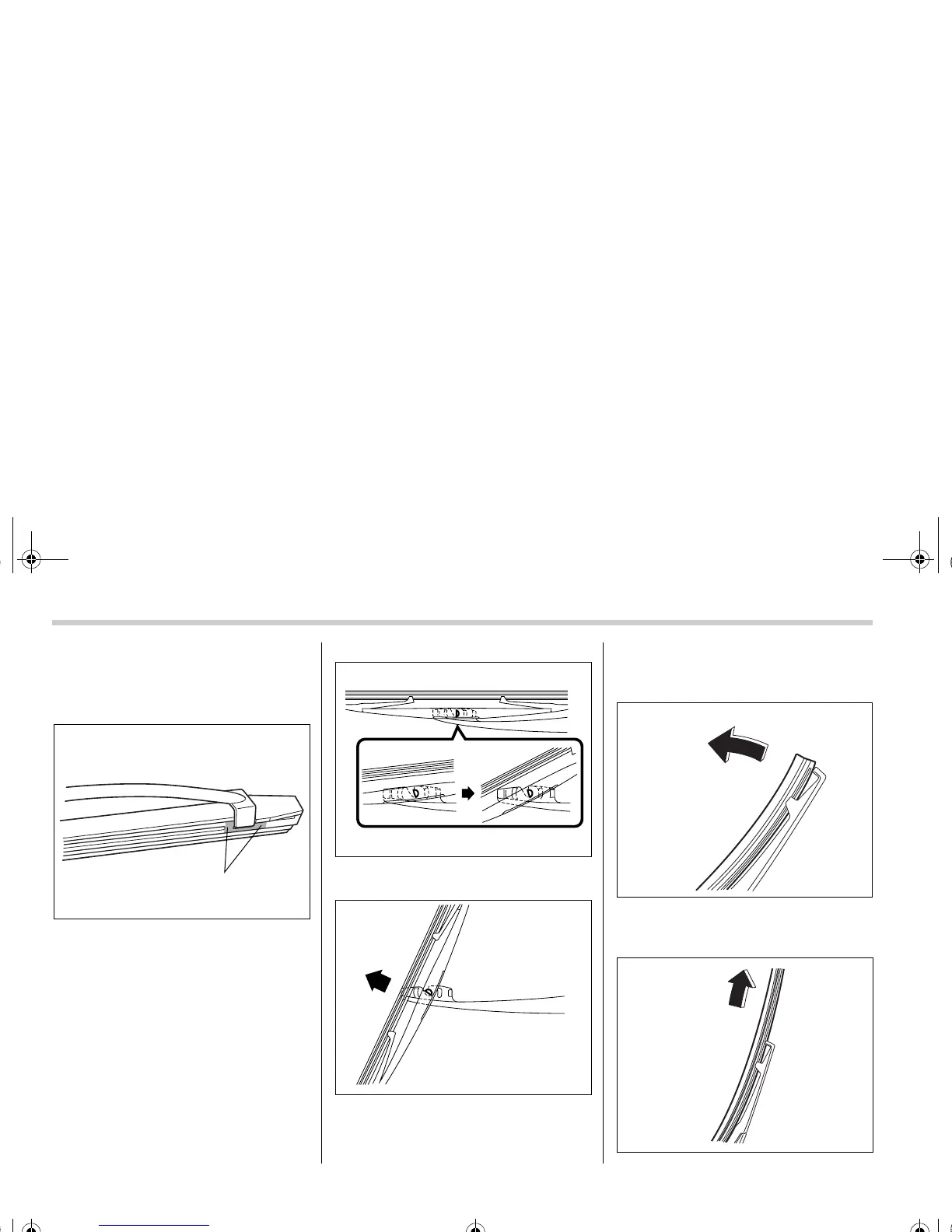

3. Align the claws of the metal support
with the grooves in the rubber and slide
the blade rubber assembly into the metal
support until it locks.
1) Stopper
4. Be sure to position the claws at the end
of the metal support between the stoppers
on the rubber as shown. If the rubber is
not retained properly, the wiper blade may
scratch the windshield.
¢ Rear window wiper blade as-
sembly
1. Raise the wiper arm off the rear win-
dow.
2. Turn the wiper blade assembly coun-
terclockwise.
3. Pull the wiper blade assembly toward
you to remove it from the wiper arm.
¢ Rear window wiper blade rub-
ber
1. Pull out the end of the blade rubber as-
sembly to unlock it from the plastic sup-
port.
1
B00332
B00061
B00062
700017
B00064
