Maintenance and service 11-51
11
– CONTINUED –

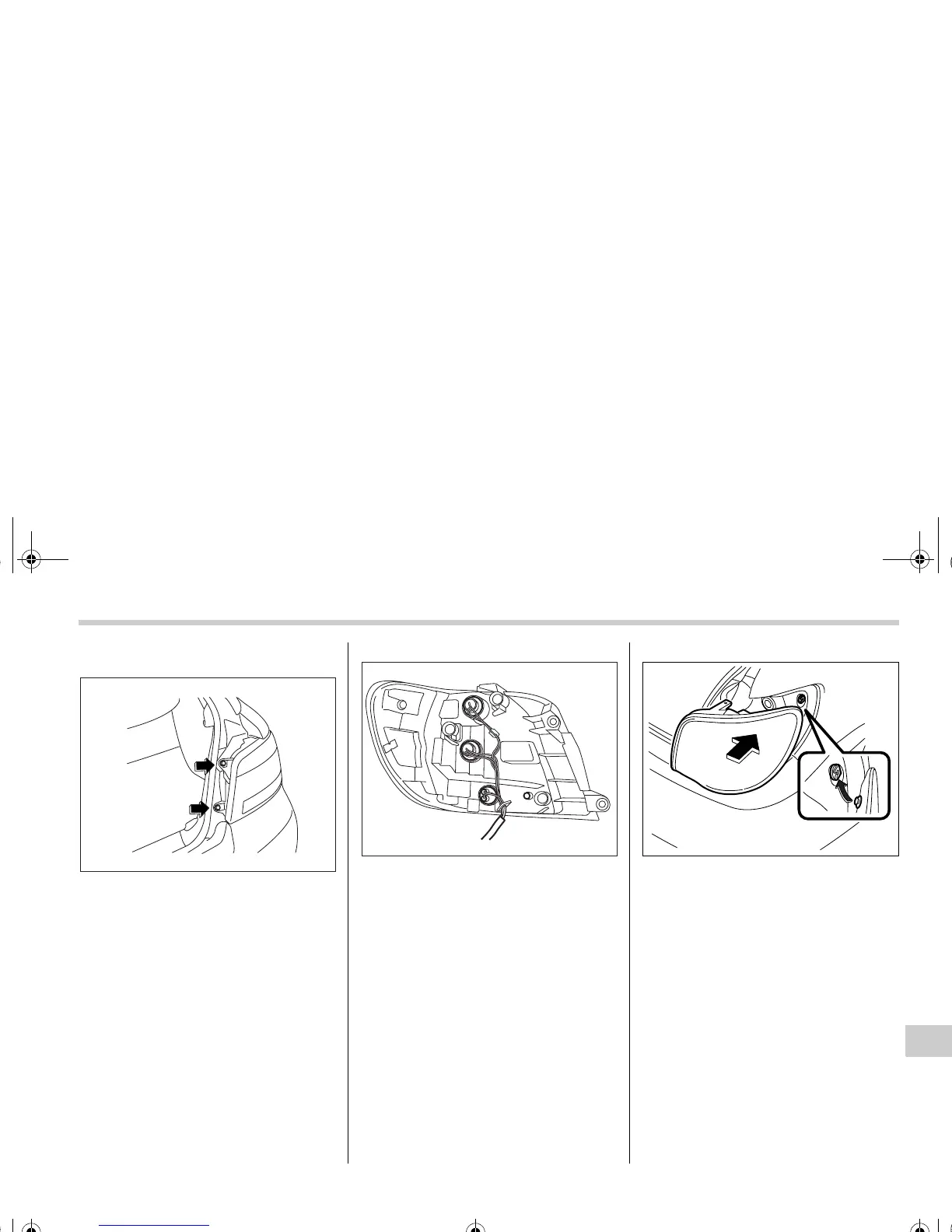

2. Remove the side cover.
3. Remove the upper and lower bolts.
Then, slide the rear combination lamp as-
sembly to the rear and remove it from the
vehicle.
1) Rear turn signal light
2) Brake/tail light
3) Backup light
4. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb socket and
replace it with a new one.
6. Set the bulb socket into the rear combi-
nation light assembly and turn it clockwise
until it locks.
7. Put the rear combination light assem-
bly into place while aligning the clip with
the guide on the vehicle and fasten the
bolts.
8. Install the side cover and secure it with
the clips.
B00497
1
2
3
B00498
B00534
