1-36 Seat, seatbelt and SRS airbags
1
2
3
4
5
6
14
15
20
19
8
11
17
18
9
7
10
12
16
13
100701

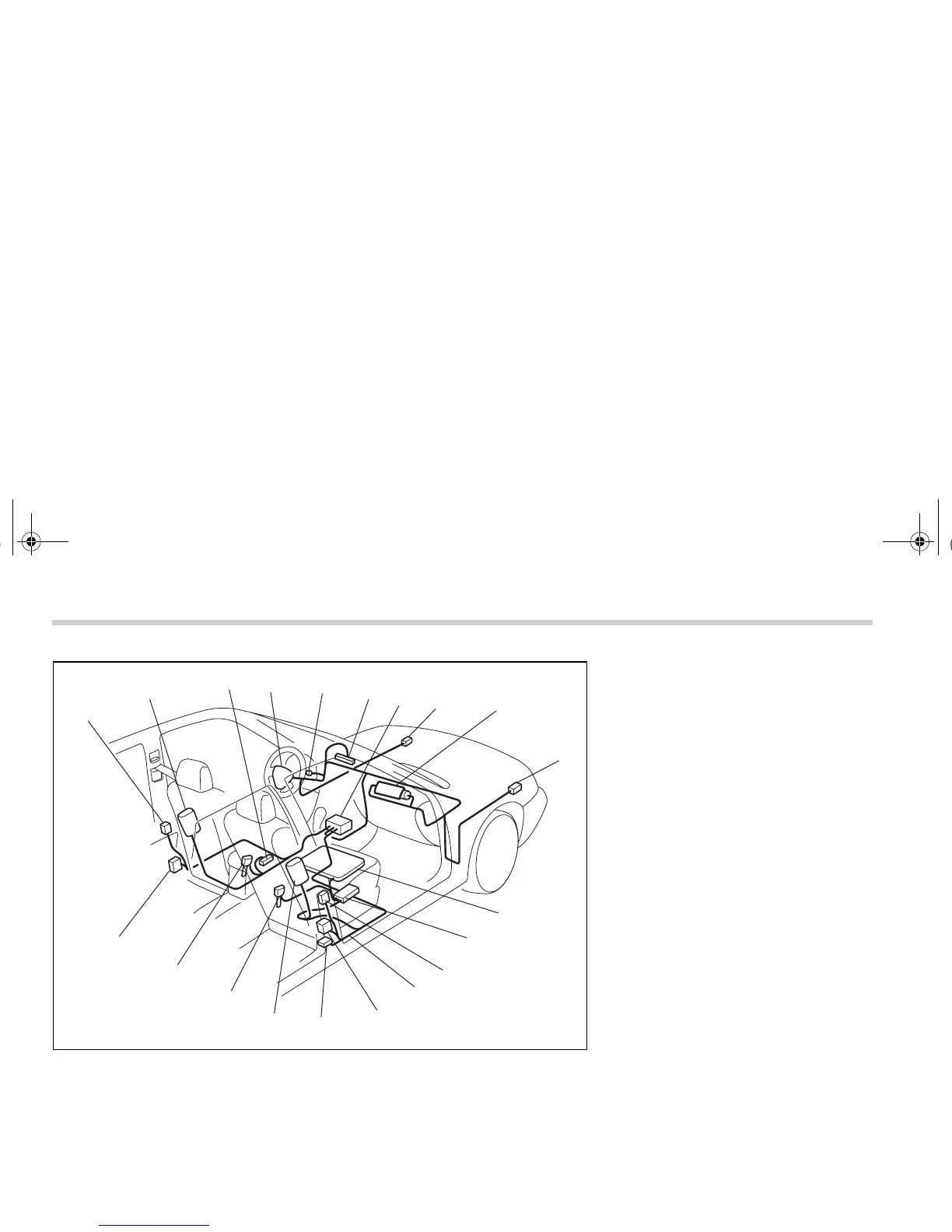

1) Airbag control module (including im-
pact sensors)
2) Frontal airbag module (driver’s
side)
3) Frontal airbag module (front pas-
senger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passen-
ger’s side)
8) Side airbag sensor (center pillar left-
hand side)
9) Side airbag sensor (center pillar
right-hand side)
10)Airbag wiring (yellow)
11)Seatbelt pretensioner (driver’s side)
12)Seatbelt pretensioner (front pas-
senger’s side)
13)Seatbelt buckle switch (front pas-
senger’s side)
14)Seatbelt buckle switch (driver’s
side)
15)Driver’s seat position sensor
16)Front passenger’s seatbelt tension
sensor
17)Front passenger’s occupant detec-
tion system weight sensor
18)Front passenger’s occupant detec-
tion control module
19)Front passenger’s frontal airbag
ON and OFF indicator
20)SRS airbag system warning light
