Carburetor

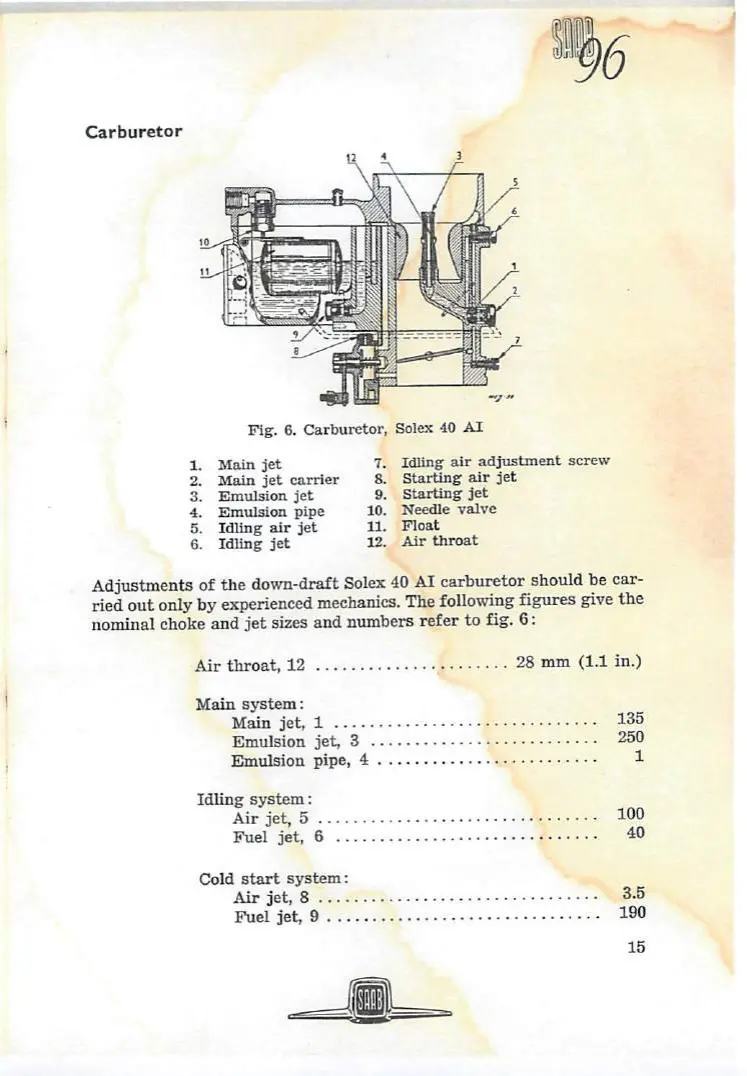

Fig. 6. Carburetor, Solex 40 AI
Main jet
Main jet carrier
Emulsion jet
Emulsion pipe
Idling air jet
Idling jet
7. Idling air adjustment screw
8. Starting air jet
9. Starting jet
10. Needle valve
11. Float
12. Air throat
Adjustments of the down-draft Solex 40 AI carburetor shouldbe car
riedout only by experienced mechanics. The following figures give the
nominal choke and jet sizes and numbers refer to fig. 6:
Air throat, 12 28 mm (1.1 in.)
Main system:
Main jet, 1 135
Emulsion jet, 3 250
Emulsion pipe, 4 1
Idling system:
Air jet, 5 10°
Fuel jet, 6 40
Cold start system:
Air jet, 8 3-5
Fuel jet, 9 19°
