Saab 96 - Instruments, Controls and Equipment

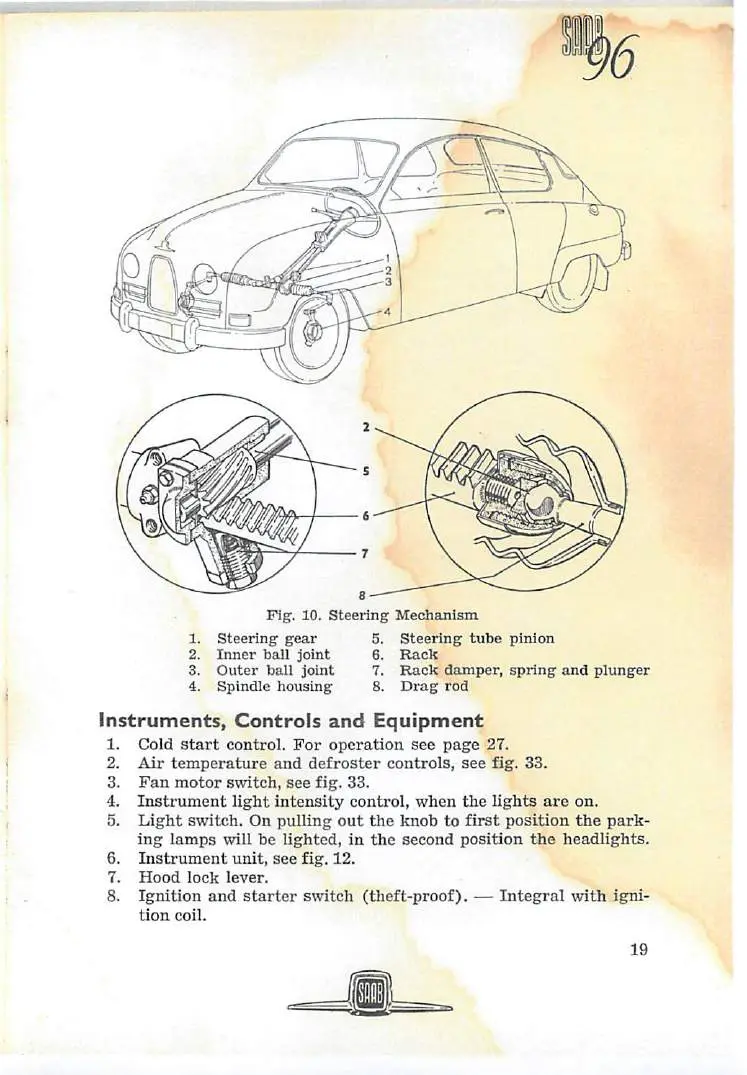

Fig. 10. Steering Mechanism
1. Steering gear 5. Steering tube pinion
2. Inner ball joint 6. Rack
3. Outer ball joint 7. Rack damper, spring and plunger
4. Spindle housing 8. Drag rod
Instruments, Controls and Equipment
1. Cold start control. For operation see page 27.
Air temperature and defroster controls, see fig. 33.
Fan motor switch, see fig. 33.
Instrument light intensity control, when the lights are on.
Light switch. On pulling out the knob to first position the park
ing lamps will be lighted, in the second position the headlights.
Instrument unit, see fig. 12.
Hood lock lever.
Ignition and starter switch (theft-proof). — Integral with igni
tion coil.
