Note. When using the engine for braking the car, the free wheel
must be locked and, after each change down in gear, the accelerator
must be depressed for a moment, otherwise the car will coast with
the engine idling as the flyweights of the centrifugal clutch are
retracted.
H eater
The fresh-air heater comprises a heater element placed in the radia
tor by-pass conduit, an electrically driven fan and controls. This
equipment is mounted behind the radiator on cowl. With the controls,

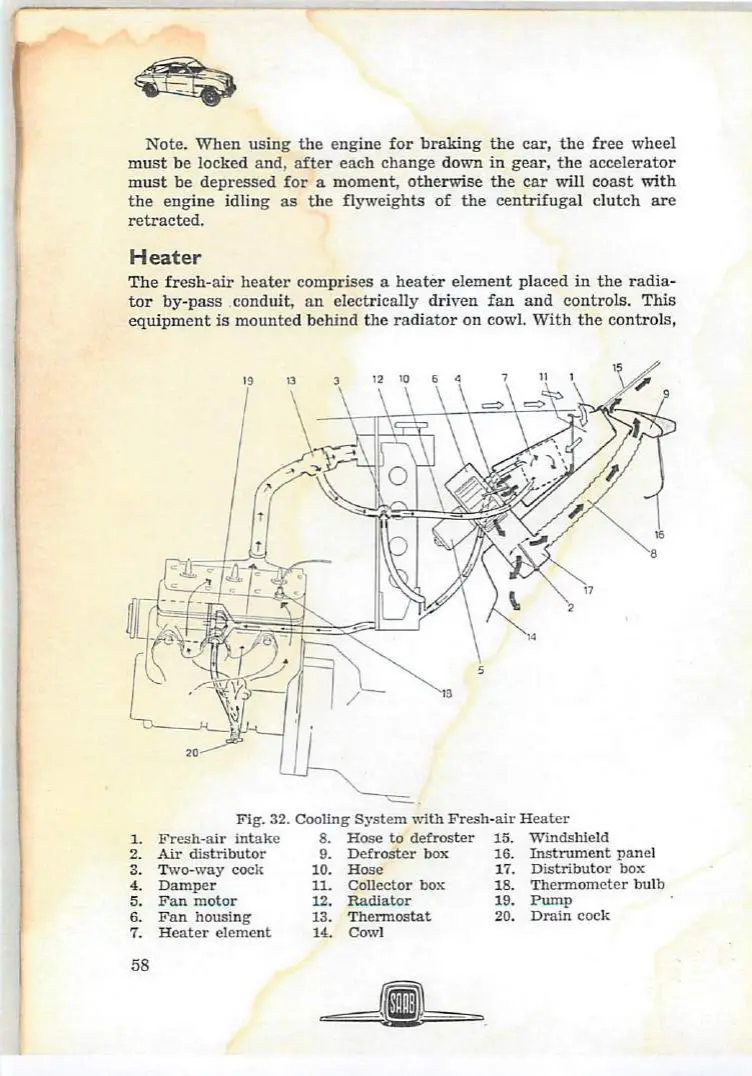

Fig. 32. Cooling System with Fresh-air Heater
8. Hose to defroster 15. Windshield
1. Fresh-air intake
2.
Air distributor
9.
Defroster box 16.
Instrument panel
3. Two-way cock
10. Hose 17.
Distributor box
4. Damper
11.
Collector box 18.
Thermometer bulb
5.
Fan motor
12.
Radiator 19.
Pump
6.
Fan housing 13. Thermostat
20.
Drain cock
7.
Heater element 14. Cowl
