13. Turn indicator switch.
14. Grill screen control.
15. Free wheel control. The free wheel is locked by pulling out the
handle entirely, see page 26.
16. Headlight dip switch, main and low beam.
17. Brake lever.
18. Seat adjustment mechanism. When the lever is depressed, the
seats are unlocked for longitudinal adjustment.
19. Mechanism for adjusting the seat back inclination.
The ventilator lever, which is not visible on the fig., is located
under the instrument panel behind the ash tray.
7 6 5 4 3 2

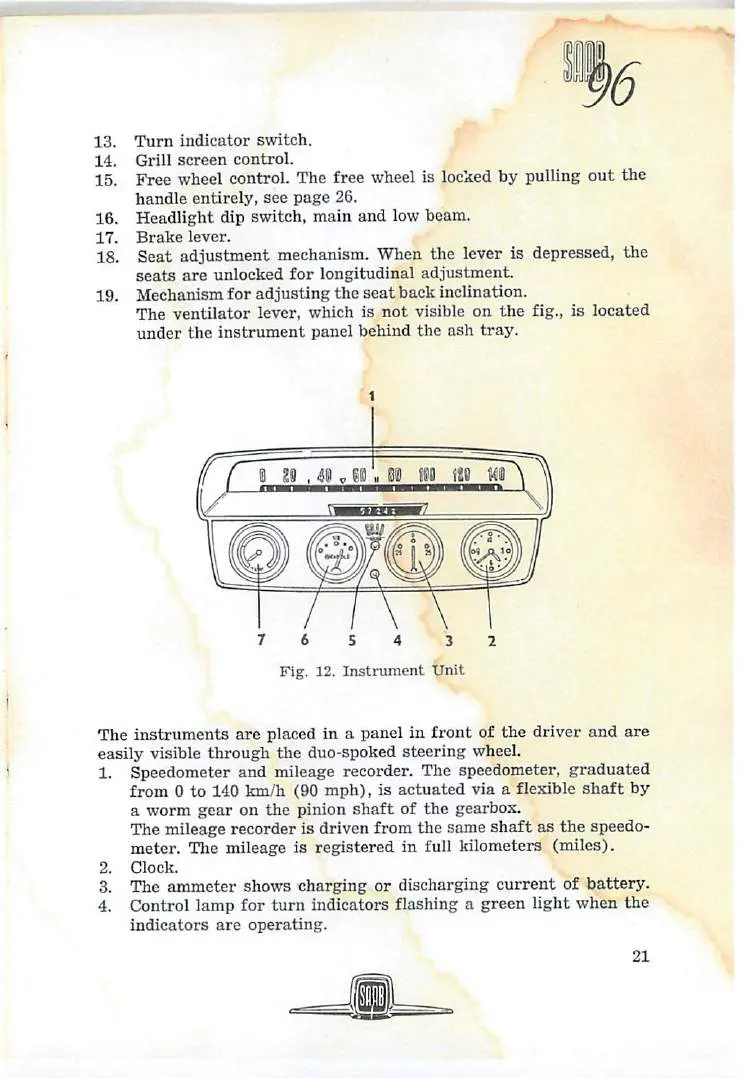

Fig. 12. Instrument Unit
The instruments are placed in a panel in front of the driver and are
easily visible through the duo-spoked steering wheel.
1. Speedometer and mileage recorder. The speedometer, graduated
from 0 to 140 km/h (90 mph), is actuated via a flexible shaft by
a worm gear on the pinion shaft of the gearbox.
The mileage recorder is driven from the same shaft as the speedo
meter. The mileage is registered in full kilometers (miles).
2. Clock.
3. The ammeter shows charging or discharging current of battery.
4. Control lamp for turn indicators flashing a green light when the
indicators are operating.
