more than 100 mm (4 in.) lower than the line 3-3. This horizontally
and vertically limited area is shown as a black field on the target
in fig. 30. If the headlights are aimed according to this description,
no separate adjustment will be required for the low beams.
Asymmetric Headlights (R.H.D.)

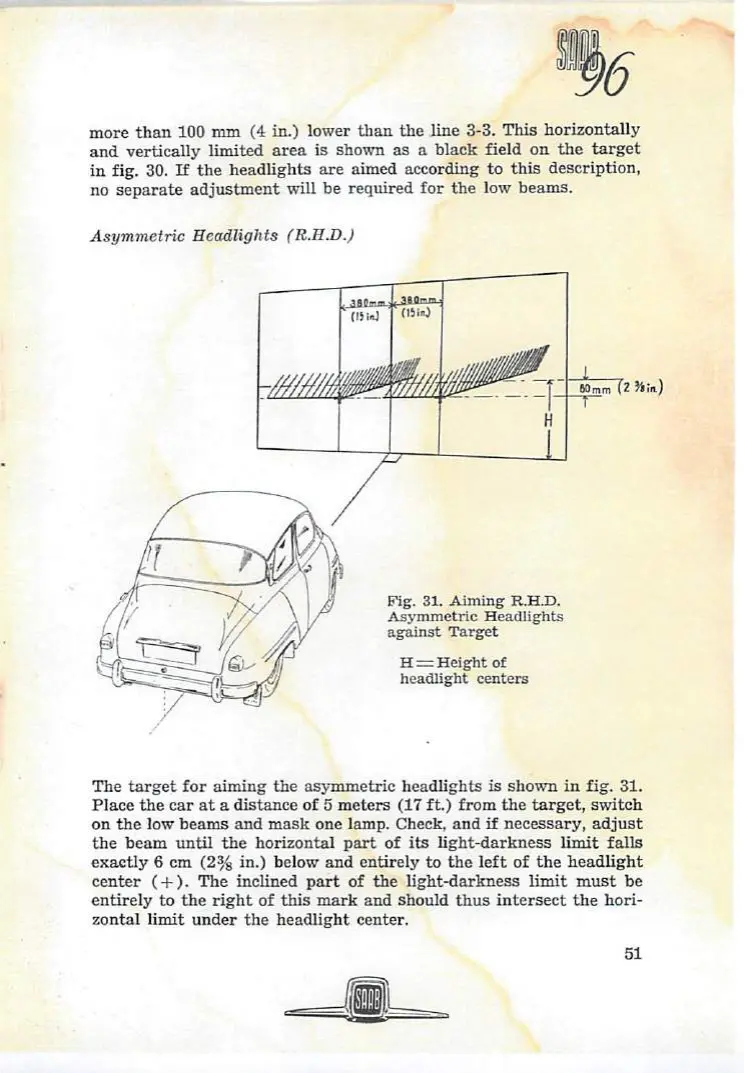

Fig. 31. Aiming R.H.D.
Asymmetric Headlights
against Target
H = Height of
headlight centers
60 mm (2 ttin.)
The target for aiming the asymmetric headlights is shown in fig. 31.
Place the car at a distance of 5 meters (17 ft.) from the target, switch
on the low beams and mask one lamp. Check, and if necessary, adjust
the beam until the horizontal part of its light-darkness limit falls
exactly 6 cm (2% in.) below and entirely to the left of the headlight
center ( + ). The inclined part of the light-darkness limit must be
entirely to the right of this mark and should thus intersect the hori
zontal limit under the headlight center.
