Carburetor
It is essential that the carburetor be kept free from impurities. For
this reason a filter, 10, is provided in the carburetor feed pipe connec
tion. This filter should be inspected regularly and cleaned whenever
necessary as should also the jets. The design of the Solex carburetor
allows the removal of all jets, except the idling air jet, without
dismantling. Positions and designations of the jets are shown in
figs. 6 and 17. It is important that carburetor* adjustments are
carried out in accordance with the manufacturer's recommendations,
otherwise the proper function of the carburetor and thereby the
engine operation may be impaired. Wrong carburetor adjustment
may cause abnormal fuel consumption and rapid wear of the engine.

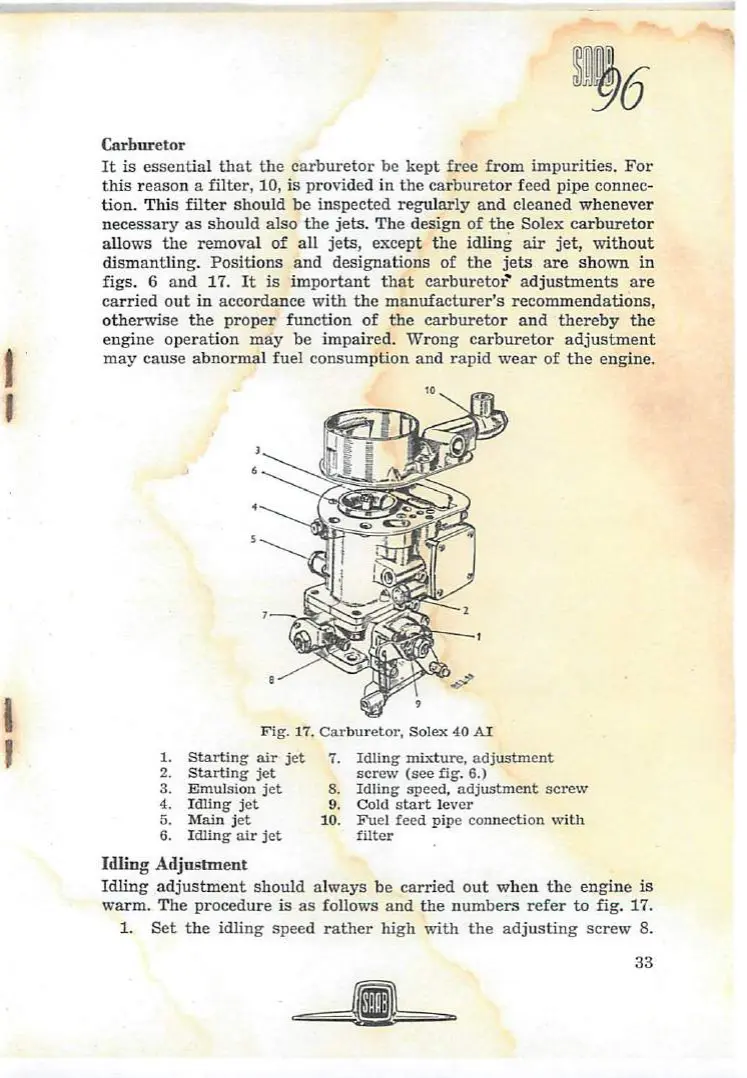

Fig. 17. Carburetor, Solex 40 AI
1. Starting air
jet 7. Idling mixture, adjustment
2. Starting jet
screw (see fig. 6.)
3. Emulsion jet
8.
Idling speed, adjustment screw
4.
Idling jet
9. Cold start lever
5.
Main jet
10.
Fuel feed pipe connection with
6. Idling air jet filter
Idling Adjustment
Idling adjustment should always be carried out when the engine is
warm. The procedure is as follows and the numbers refer to fig. 17.
1. Set the idling speed rather high with the adjusting screw 8.
