lowing functions:

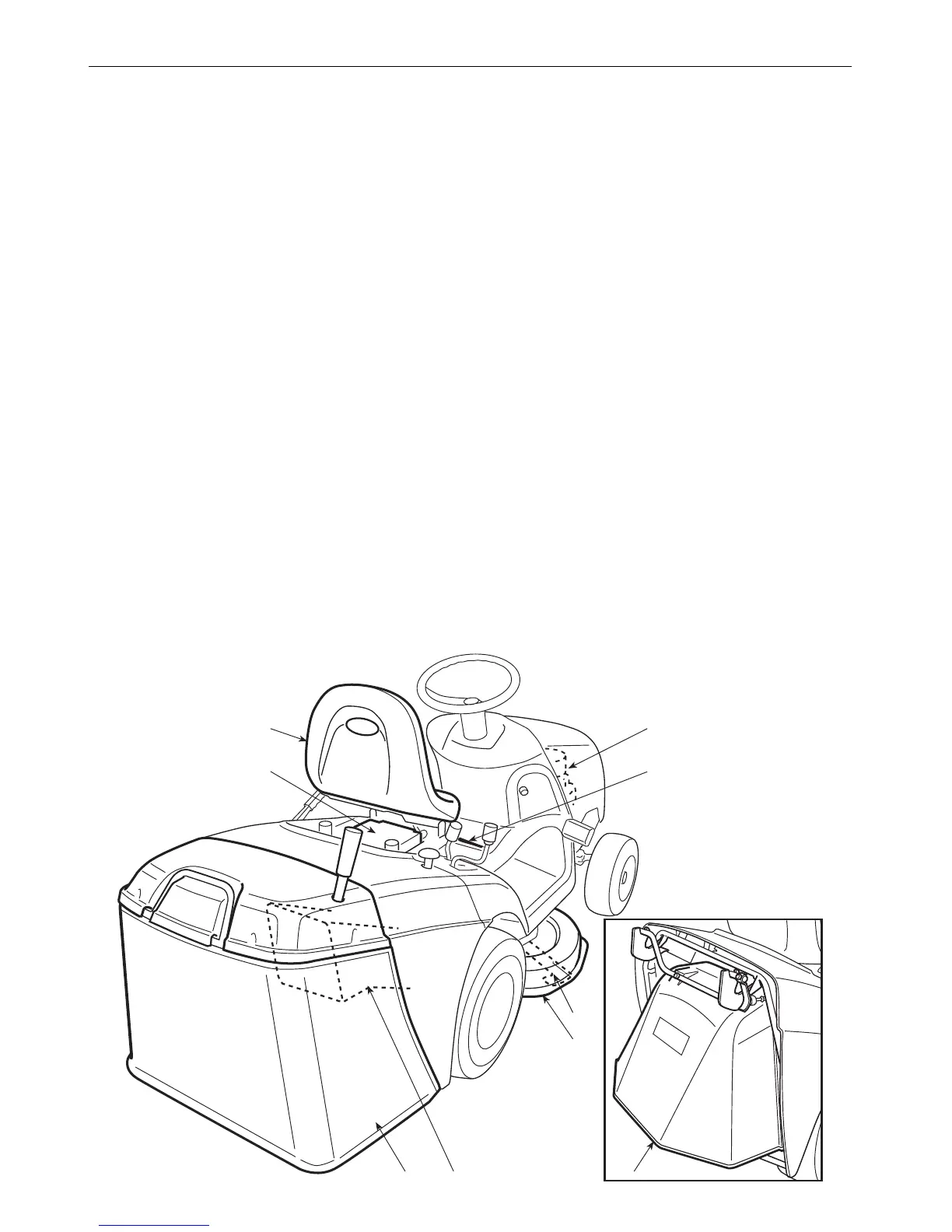

11. Cutting deck: this is the guard enclosing the rotating blades.
12. Blades: these are what cut the grass. The wings at the ends help convey the
cut grass towards the collector channel.
13. Collector channel: this is the part connecting the cutting deck to the grass-
catcher.
14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety
element in that it stops any objects drawn up by the blades from being
thrown outside of the lawn-tractor.
15. Stone-guard or deflector: this can be fitted in place of the grass-catcher
and prevents objects drawn up by the blades from being thrown outside of
the lawn-tractor.
16. Engine: this moves the blades and drives the wheels. It is fully described in
a specific booklet.
17. Battery: provides the energy for starting the engine. It is fully described in a
specific booklet.
18. Driver seat: this is where the machine operator sits. It has a sensor for
detecting the presence of the operator which is a safety device.
19. Decals for regulations and safety: give reminders on the main provisions
for working safely, each of which is explained in chapter 1.
eng 8 IDENTIFICATION OF THE MACHINE AND PARTS
