Push the pin in using a hammer, ensuring that it comes completely through to the
opposite side.
To avoid damaging the hub, use an awl or a screw-driver of
the same size as the pin to push it in the last part.

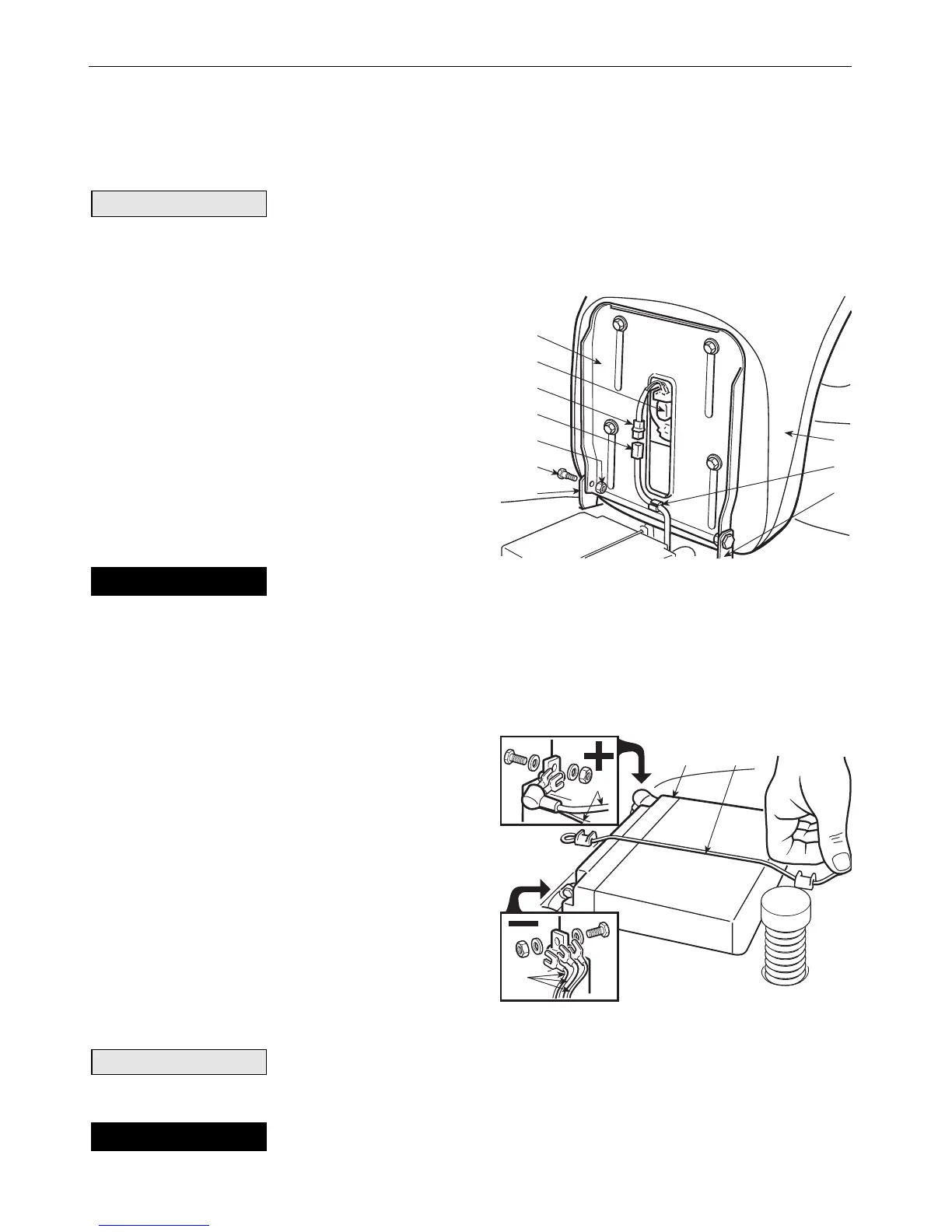

FITTING THE SEAT
The seat (1) is supplied attached to a
support bracket (2) on which has been fit-
ted a micro-switch (3). Fit the support
bracket (4) using the screw pins (5) sup-
plied, fully tightening the relative nuts (6).
Connect the micro-switch socket (7) to the one coming
from the general wiring (8) to ensure that the safety device works, and
then fit the wire into the wire-holder (9)
CONNECTING THE BATTERY
The battery (1) is situated in a compart-
ment under the seat and is held in place
by a spring (2).
Connect the two red cables (3) to the
positive terminal (+) and the three black
cables (4) to the negative terminal (–)
using the supplied screws and following
the illustrated sequence.
Recharge the battery according to the
manufacturer's instructions
To prevent the safety device in the electronics card from cut-
ting in, never start the engine until the battery is fully charged!
Follow the battery manufacturer's instructions regarding
safe handling and disposal.
!
ATTENTION!
IMPORTANT
!
ATTENTION!
NOTE
eng 10 UNPACKING AND ASSEMBLY
