OPERATOR GR.-CATCHER BLADES TRANSMISSION BRAKE ENGINE
A) WHEN STARTING (Key in «START» position)
Sitting –/– Disengaged F / R
Engaged Does NOT start
Sitting –/– Engaged «N» Engaged Does NOT start
Absent –/– Disengaged «N» Disengaged Does NOT start
Sitting –/– Disengaged «N» Engaged Starts
Sitting –/– Disengaged «N» Disengaged Starts
Absent –/– Disengaged «N» Engaged Starts
B) WHEN CUTTING (Key in «ON» position)
Sitting YES Engaged –/– Disengaged Running
Sitting NO Disengaged –/– Disengaged Running
Absent –/– Disengaged «N» Engaged Running
Sitting NO Engaged –/– Disengaged Stops
Absent YES Disengaged «N» Disengaged Stops
Absent YES Engaged –/– Engaged Stops
Card protection device
The electronic card has a self-resetting protector which breaks the circuit if there
is a fault in the electrical system. It results in the stopping of the engine and is
signalled by the pilot lamp turning off.
The circuit resets after a few seconds but the cause of the fault should be ascer-
tained and dealt with to avoid re-activating the protection device.
To avoid activating the protection device:
– Do not reverse the cables on the battery terminals
– Do not use the lawn-tractor without its battery or damage may be caused to
the charging regulator
– be careful to not cause short-circuits.
End of mowing
When you have finished mowing, disengage the bla-
des and ride the lawn-tractor with the cutting deck in
the highest position.
Stop the lawn-tractor, engage the parking brake and
turn off the engine by turning the ignition key to
«OFF».

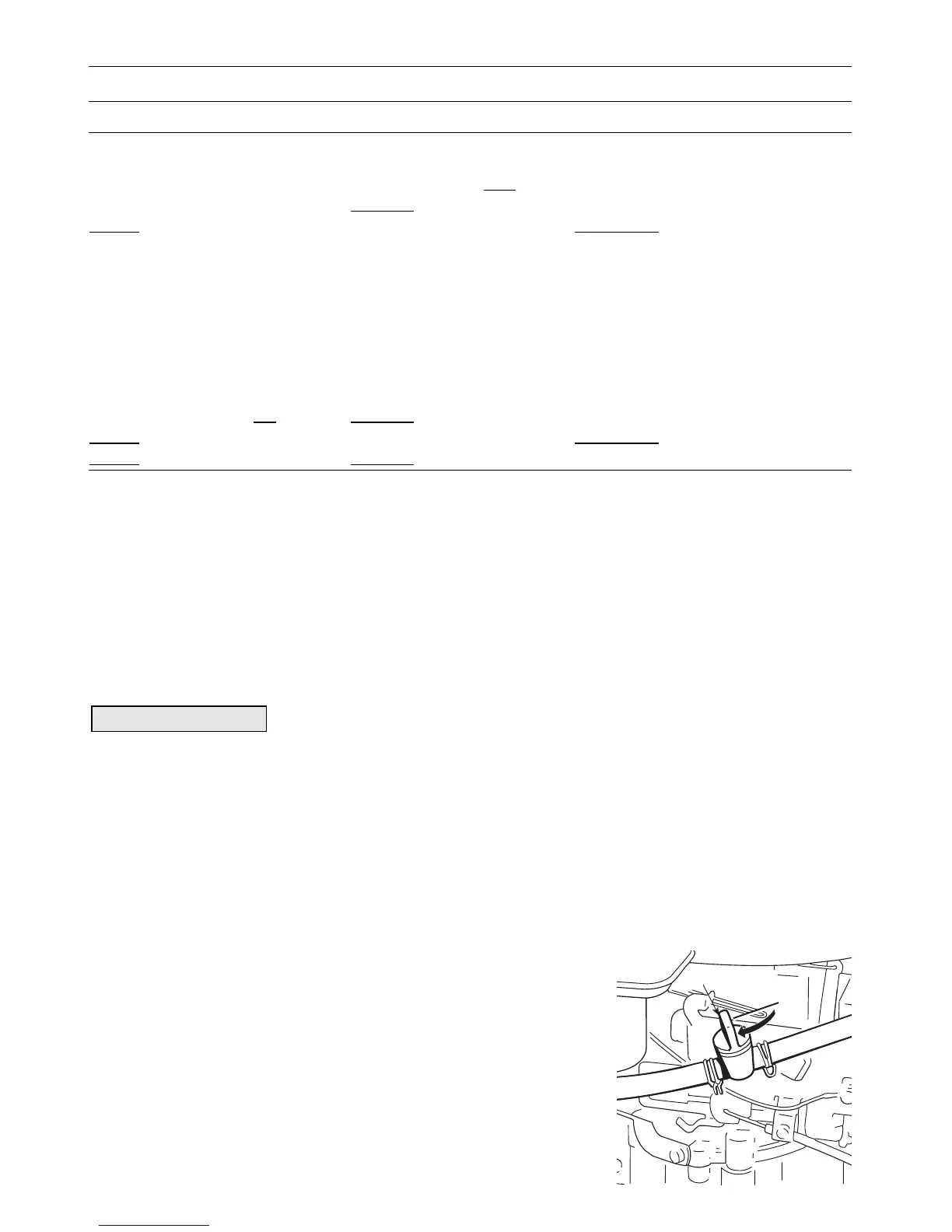

When the engine is stopped, close the fuel cock (1).
IMPORTANT
eng 24 HOW TO USE THE MACHINE
