2. Installing FOCUS H2 In-car Video System

FOCUS H2 Installation Guide

p. 14

 NOTE: DI & DO Port Function

DI Port Function:

Electrical Current Limitation: < 5mA

Electrical Operating Voltage: 8~12V

DO Port Function:

Electrical Current Limitation: < 2A

Electrical Operating Voltage: 0~24V

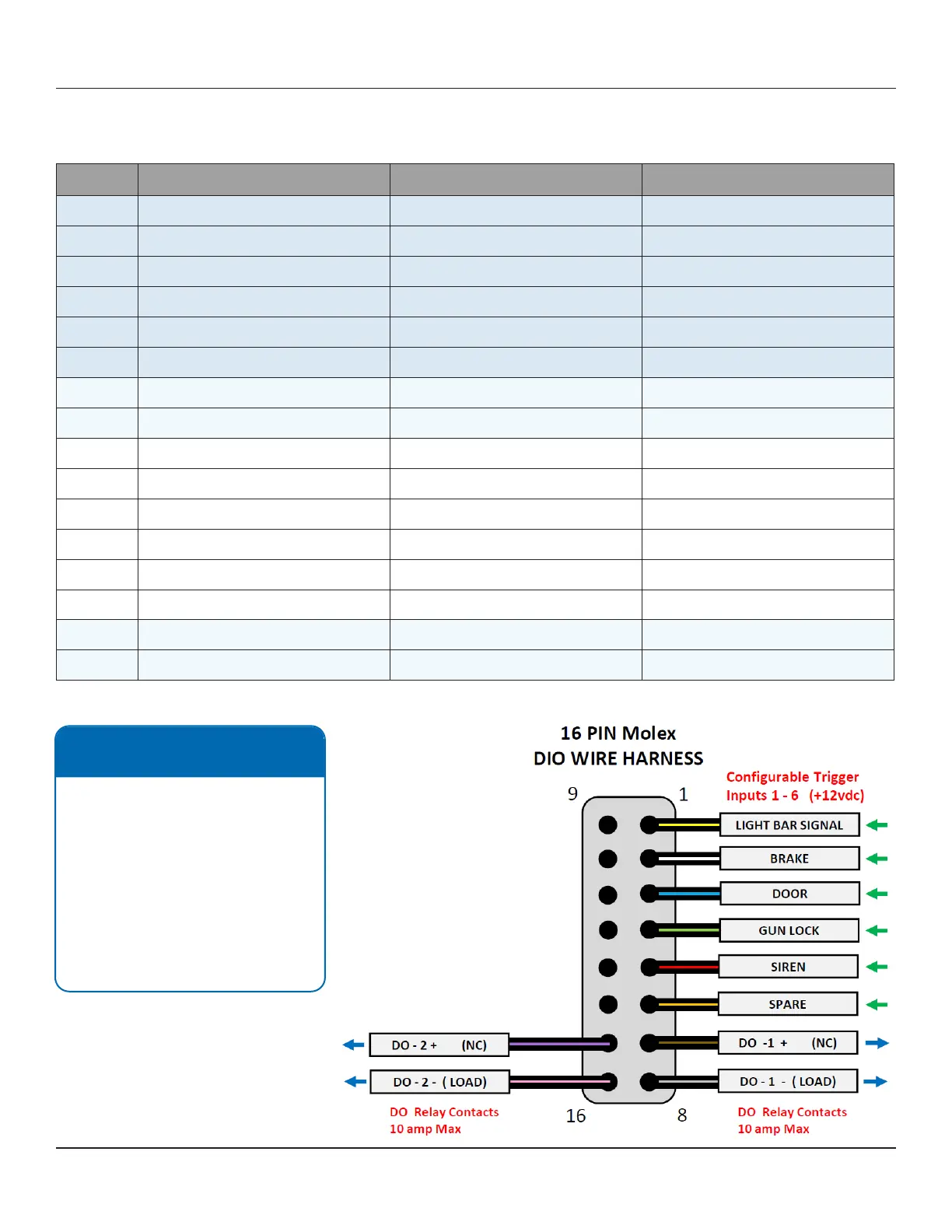

Input and Output Descriptions

Pin # Connector Function Color

1 DI - 1 Input Lightbar Black / yellow stripe

2 DI - 2 Input Brake Black / white stripe

3 DI - 3 Input Spare (Recommended: Door) Black / blue stripe

4 DI - 4 Input Spare (Recommended: Gun Lock) Black / green stripe

5 DI - 5 Input Spare (Recommended: Siren) Black / red stripe

6 DI - 6 Input Spare Black / orange stripe

7 DO - 1 + Output (NC) + Black / brown stripe

8 DO - 1 - Output - Load Black / gray stripe

9 N/C Gnd N/A

10 N/C Gnd N/A

11 N/C Gnd N/A

12 N/C Gnd N/A

13 N/C Gnd N/A

14 N/C Gnd N/A

15 DO - 2 + Output (NC) + Black / violet stripe

16 DO - 2 - Output - Load Black / pink stripe
