2. Installing FOCUS H2 In-car Video System

FOCUS H2 Installation Guide

p. 18

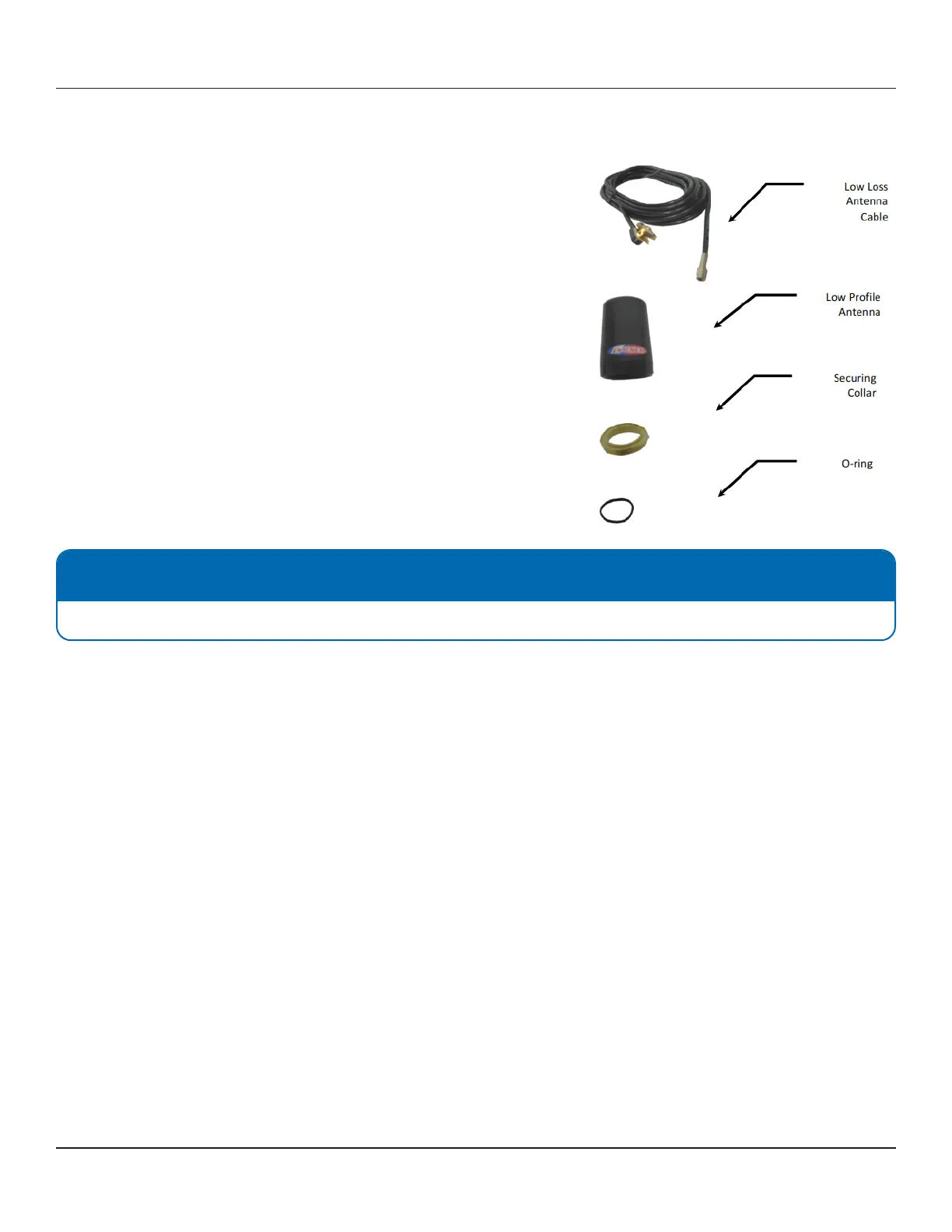

2.8.3 Fixed Mount Antenna with Low Loss Cable (for Wireless Upload)

• This accessory should be mounted either on the trunk lid (at least one

foot (1') away from the rear windshield), or on the roof of the vehicle

(preferably forward of the light-bar), at least one foot (1') away from

any other antenna or the light-bar.

• This antenna operates on the "line-of-sight" concept, and needs a clear

path to locate the access point.

• The low loss cable should be routed as far away from any high

frequency or high voltage equipment and their related cables and

wiring as possible.

• Safe Fleet recommends routing this cable along the same route as the

Safe Fleet color coded cables.

• This accessory will be plugged into the back of the CPU, near the pig-

tails, utilizing a RP SMA Male connector.

 NOTE: Number of antennas required

2 antennas are required for proper wireless operation.

Safe Fleet FOCUS H2 - Page 19
