Sailrite Craftool Pro Stitch Master - Page 38

9
4
3
2
8
1
23
7
22
12
29
28
6
5
12
31
33
33
32
34
15
16
10
11
20
35
21
24
12
17
18
26
27
19
14
30
30
14
13
25
KEY PART NAME PART # KEY PART NAME PART #
1 Top Plate 121530
2 Top Plate Screw B071
3 Bobbin Winder Stopper E066
4 Bobbin Winder Stopper Screw E066-2
5 Small Plate Cover 121531
6 Screw 100577
7 Bobbin Winder Assembly Nut E070-1
8 Bobbin Winder Assembly E070
9 Spool Pin 149
10 Arm Body N/A
11 Bed N/A
12 Set Screw 103640
13 Left End Plate 121532
14 Screw C097
15 EZ Set™ Stitch Length Plate 105511
16 Stitch Length Plate Screw 103263
17 Needle Plate (5mm) W032
18 Needle Plate Screw A052
19 Shuttle Race Slide Plate 121534
20 Three Hole Thread Guide W029
21 Upper Tension Assembly
(includes 24) 8511
22 Thread Guard Screw 103253
23 Top Plate Set Screw E072
24 Thread Take-Up Spring
(included in 21) 5332
25 Tension Release Pin W184-2
26 Shuttle Race Slide Spring A049
27 Shuttle Race Slide Spring
Screw A050
28 Take Up Arm Guard 102626
29 Set Screw A012
30 Left End Plate Washer 103252
31 Bobbin Winder Assembly
Screw 103255
32 Bobbin Winder W030
33 Bobbin Winder Set Screw B010
34 Bobbin Winder Ring 120181
35 Hinge Pin Set Screw 120061

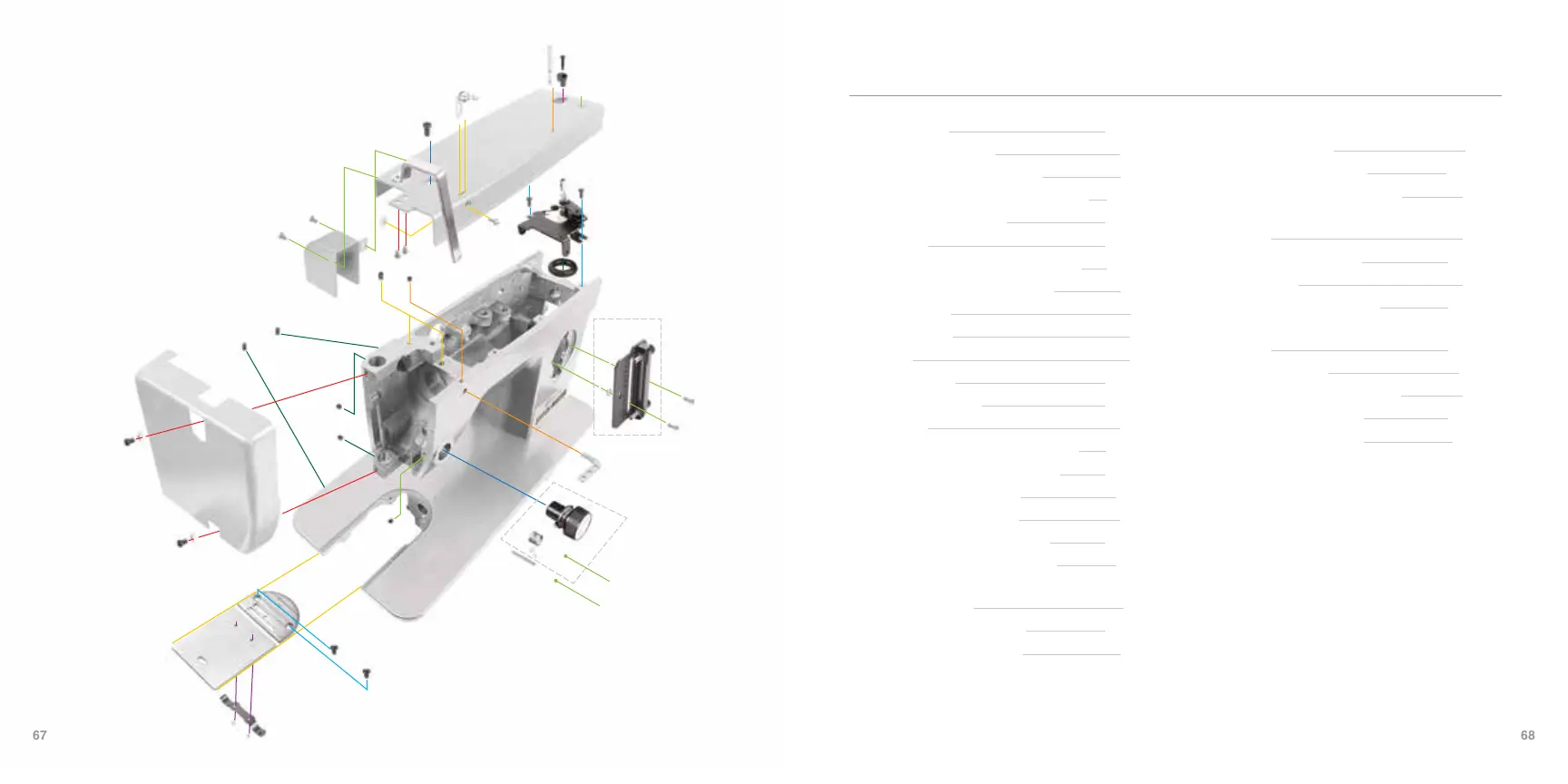

GROUP 1: Construction External Group
components may
be purchased
separately
67
68
