Sailrite Craftool Pro Stitch Master - Page 39

KEY PART NAME PART # KEY PART NAME PART #
1 Arm Shaft E053
2 Feed Cam B007
3 Arm Shaft Bushing B051
4 Set Screw A012
5 Thread Take-Up Lever Cam B048
6 Thread Take-Up Assembly Set Screw A029
7 Thread Take-Up Lever Cam Screw 103256
8 Crank Rod Lever Cam Follower W028-4
9 Crank Rod Lever Cam Follower
Adjust Nut W028-2
10 Crank Rod Lever Cam Follower Bolt W028-1
11 Thread Take-Up Assembly E020
12 Needle Bar Connecting Rod Set
Screw - Reverse Thread E020-2
13 Needle Bar Connecting Rod B018
14 Needle Bar Connecting Stud A042S
15 Needle Bar Connecting Stud
(Face Screw Alternate) A042
16 Needle Screw A092
17 Presser Regulating Thumb Screw A031
18 Presser Regulating Thumb Screw
Socket W010
19 Presser Bar Spring A032
20 Needle Bar Support B016
21 Needle Bar Set Screw D097
22 Zigzag Connecting Rod W015
23 Needle Bar Connecting Joint Pin B099
24 Needle Bar W066
25 Needle Thread Guide W067
26 Needle (135X16) N/A
27 Presser Foot Screw A036
28 Inside Presser Foot W012
29 Presser Bar A035-1
30 Presser Bar Lower Bushing B028
31 Presser Bar Bracket W039
32 Presser Bar Feed Actuator Pivot
Screw 103257
33 Tension Release Lever Drag Link W043
34 Tension Release Lever Drag Link Set
Pin D020
35 Tension Release Lever W045
36 Tension Release Lever Set Screw B046
37 Presser Bar Actuator Cam W065
38 Needle Guard
(220-240 Volt Stitch Master
®
Only) 102627
39 Set Screw W052-1
40 Needle Bar Set Screw with 2.5mm
Hex Head 121695
41 Needle Crank Arm 103269
42 Connecting Rod Set Base W016
69
70

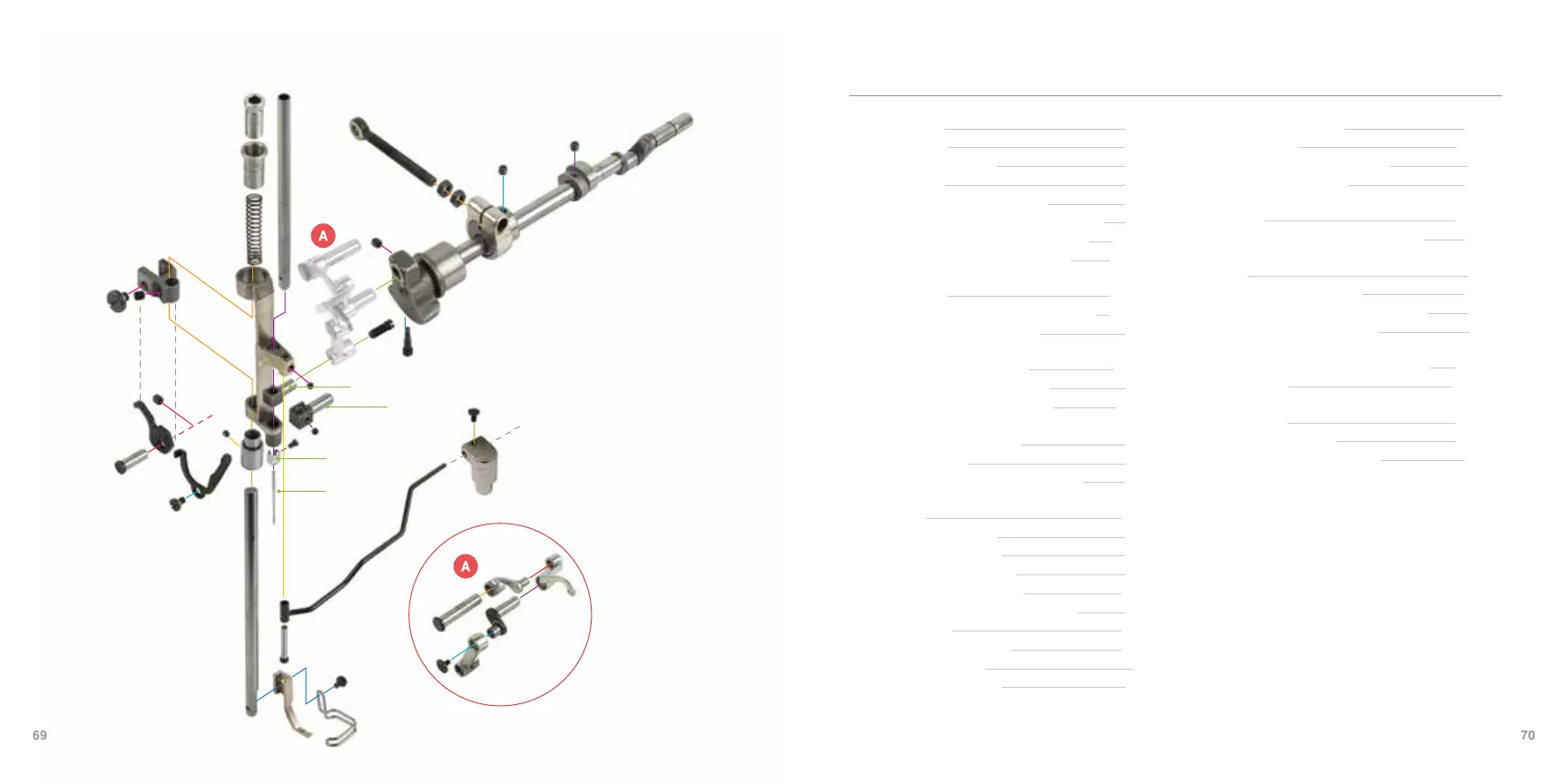

GROUP 2: Sewing Transmission Group
