Sailrite Craftool Pro Stitch Master - Page 40

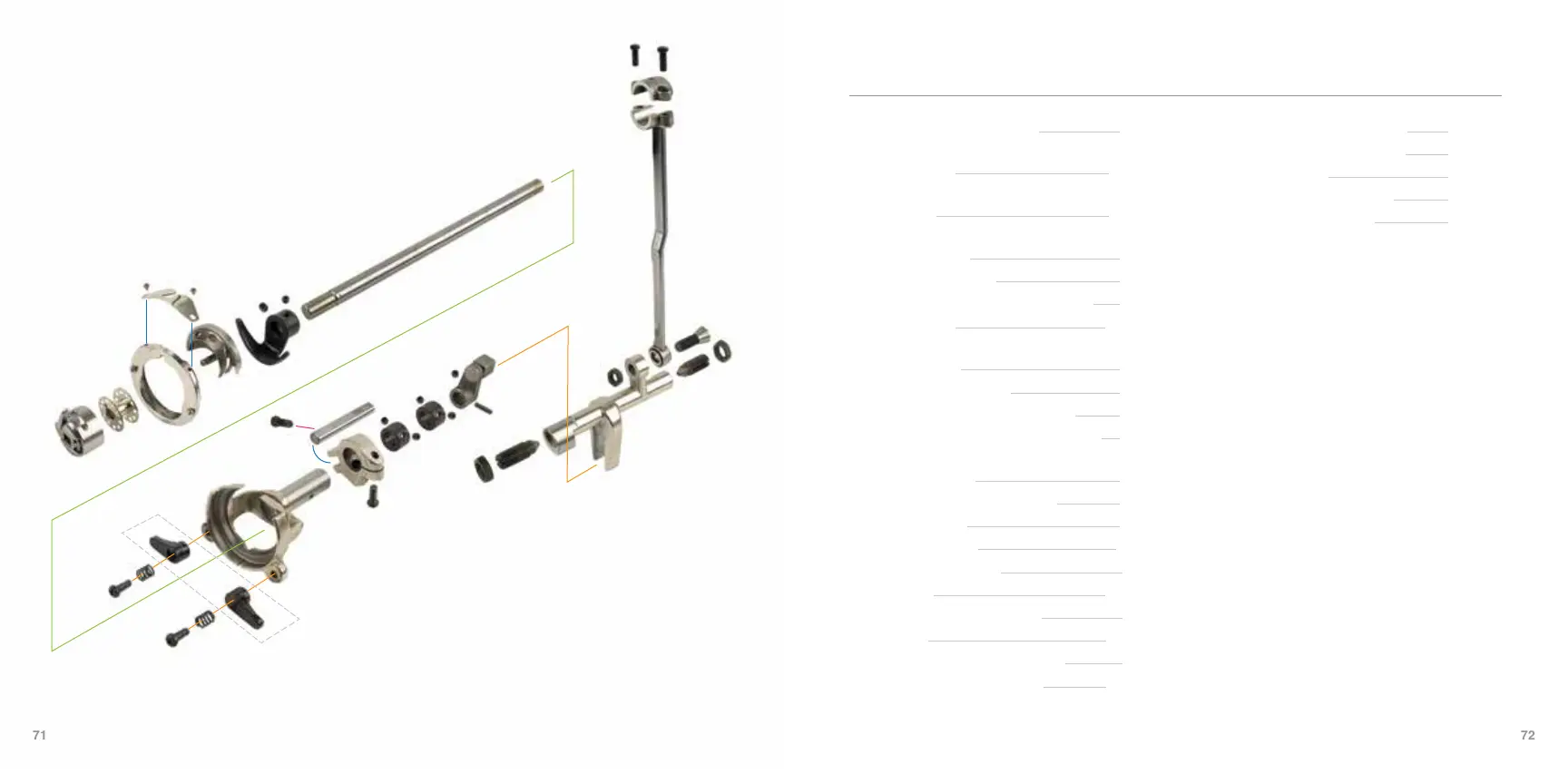

GROUP 3: Shuttle Transmission Group
KEY PART NAME PART # KEY PART NAME PART #
1 Crank Connecting Rod B139
2 Crank Connecting Rod
Set Screw A027A
3 Crank Connecting Rod
Set Nut A027B
4 Oscillating Shaft Set
Screw & Nut A023
5 Oscillating Shaft A024
6 Oscillating Shaft Crank Set Pin A018
7 Set Screw 103640
8 Oscillating Shaft Crank With
Slide Block B179
9 Lower Shaft Collar B177
10 Compressible Timing Clamp B155
11 Compressible Timing Clamp Pin A084
12 Compressible Timing
Clamp Screw B153
13 Shuttle Race Guide Shaft B170
14 Lower Shaft B172
15 Shuttle Driver W172
16 Shuttle Gib Hook 9601
17 Bobbin 123100
18 Bobbin Case Assembly 1232
19 Screw B139-2
20 Retaining Ring Cap Spring 1603
21 Retaining Ring Clip Set 123011
22 Retaining Ring Clip Spring 103273
23 Retaining Ring Clip Screw 103274
24 Retaining Ring 102241
25 Timing Clamp Pin Screw 103259
26 Retaining Ring Screw 102496
19
1
2
4
3
5
4
14
7
15
16
26
26
20
24
17
18
23
22
21
22
23
13
25
11
10
12
7
7
9
9
7
8
6
71
72
