KEY PART NAME PART # KEY PART NAME PART #
1 Feed Regulator Thumb Nut W109
2 Feed Regulator Lever W105
3 Feed Regulator Lever Nut A053B-2
4 Feed Regulator W107
5 Feed Regulator Spring W106
6 Feed Regulator Screw B010
7 Feed Regulator Pivot Screw W108
8 Feed Connection Slide Block A069B
9 Feed Connection Slide
Block Stud A069A
10 Forked Rod B103
11 Oscillating Shaft Set Screw
and Nut A023
12 Driving Crank W046
13 Feed Rock Shaft Crank A071B
14 Feed Rock Shaft A071A
15 Feed Bar Center Screw & Nut A076
16 Feed Bar A075
17 Feed Dog Screw A078
18 Feed Dog 121265
19 Driving Crank Guide Nut W046-1
20 Driving Crank Guide Screw A061
21 Feed Lifting Rock Shaft A072
22 Feed Lifting Rock Shaft Crank A073
23 Screw B139-2
24 Feed Regulator Wavy Washer A067
25 Forked Rod Support Spring B103U
26 Forked Rod Support
Spring Screw B103US

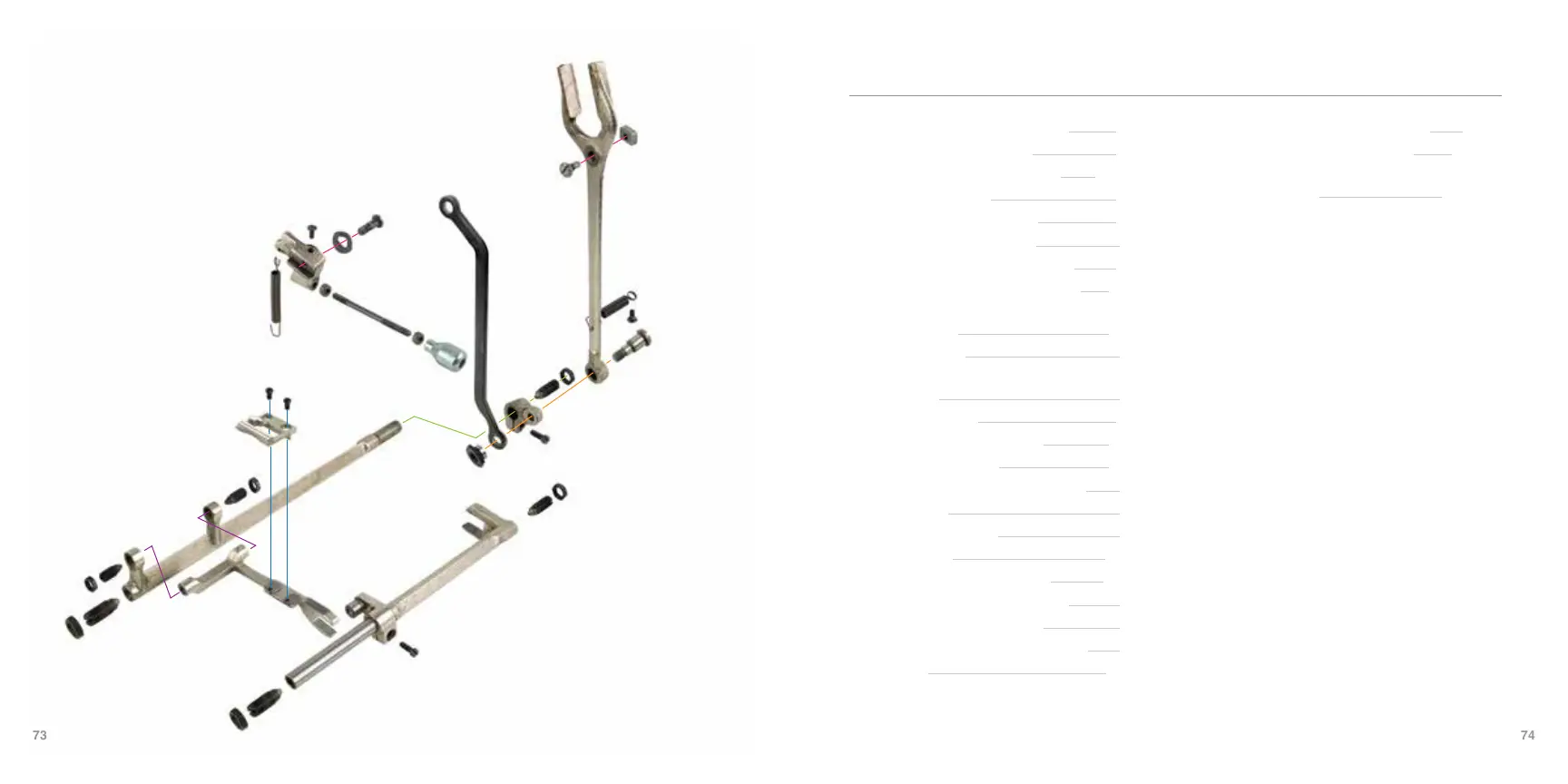

GROUP 4: Feed Transmission Group
10
25
26
20
23
19
13
11
11
12
1
2
3
3
5
4
6
7
24
17
18
14
15
11
11
16
22
23
21
15
9
8
